SLP 24R

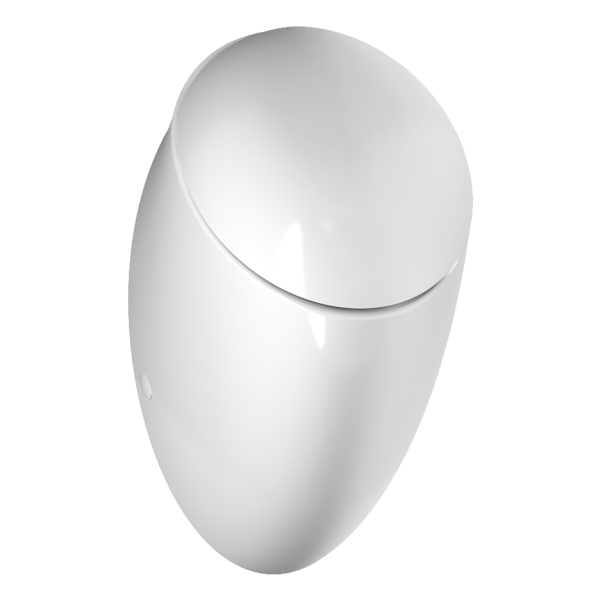

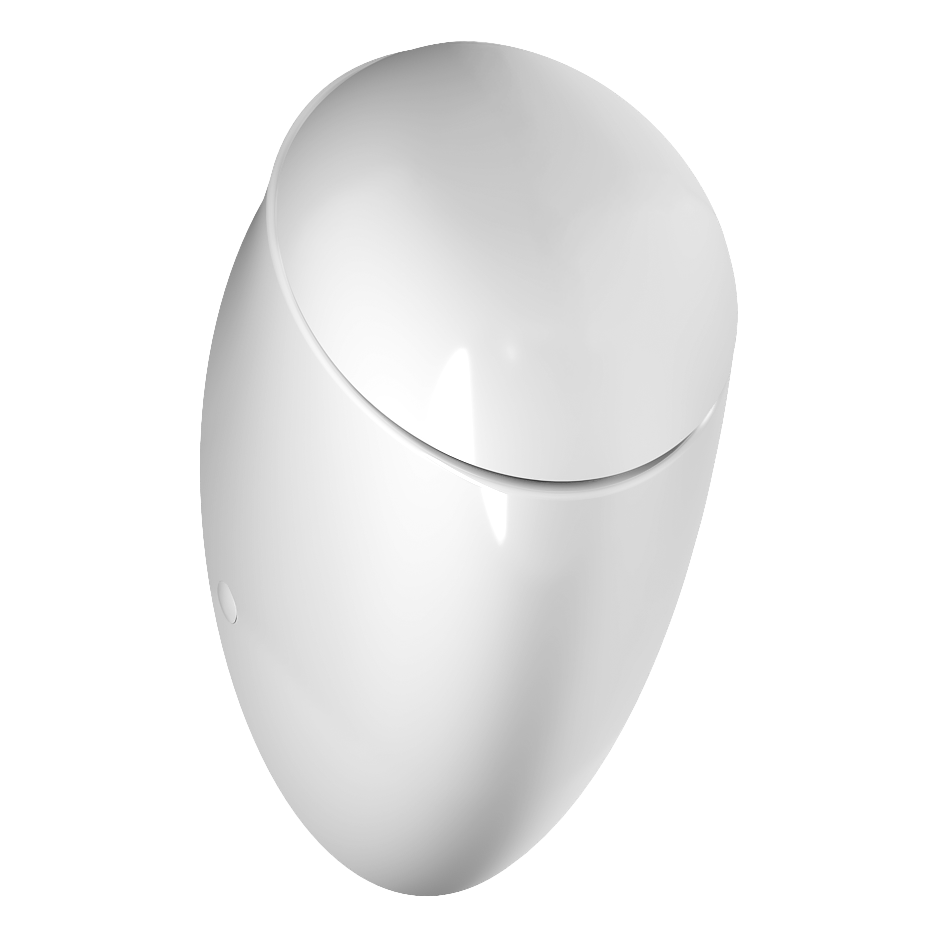

Urinal Alessi with cover and with a radar flushing unit, 24 V DC
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- easy installation
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
- Order number: 01244
I am interested in more information:
Supply specification

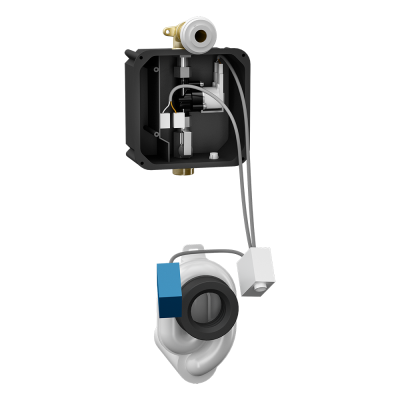

SLP 24R - Supply No. 01244 - ceramic urinal with radar flushing unit including Bluetooth module, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, mounting set, siphon, plastic cover
Technical information
Power supply: | 24V DC |
Location: | behind the urinal |
Flushing unit: | urinal with cover included |
Control: | radar |
Dimension of mounting box: | 140 x 140 x 75 mm |
Operating voltage: | 24 V DC |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 18 l/min (inf. data) |
Water inlet: | male thread G 3/4“ |
Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Mounting instructions (4.25 MB)
- Catalogue list (301.01 kB)
- Mounting diagram (410.2 kB)
- 2D Drawing (42.35 kB)
Accessories
