SLP 31RB

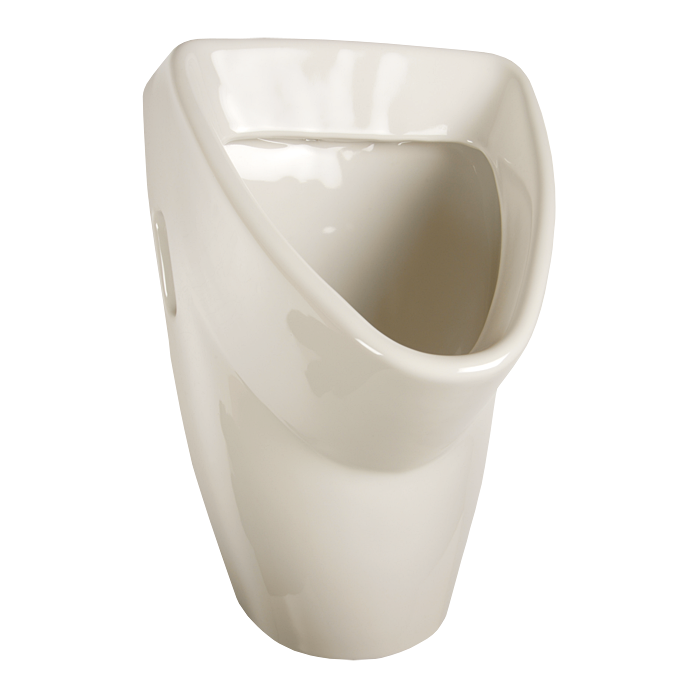

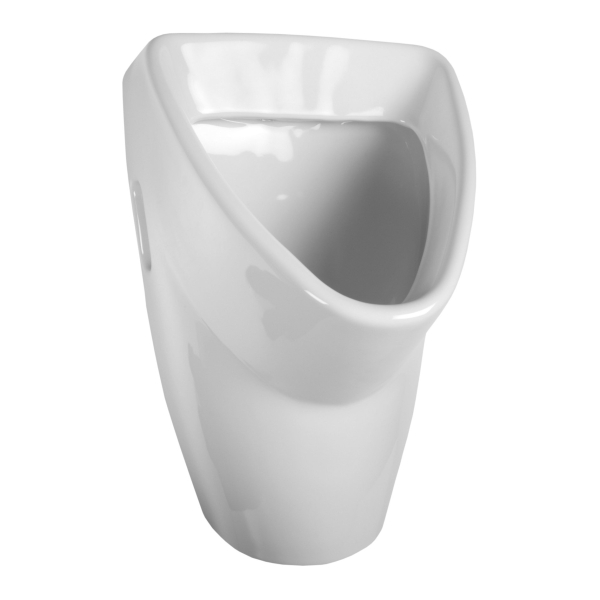

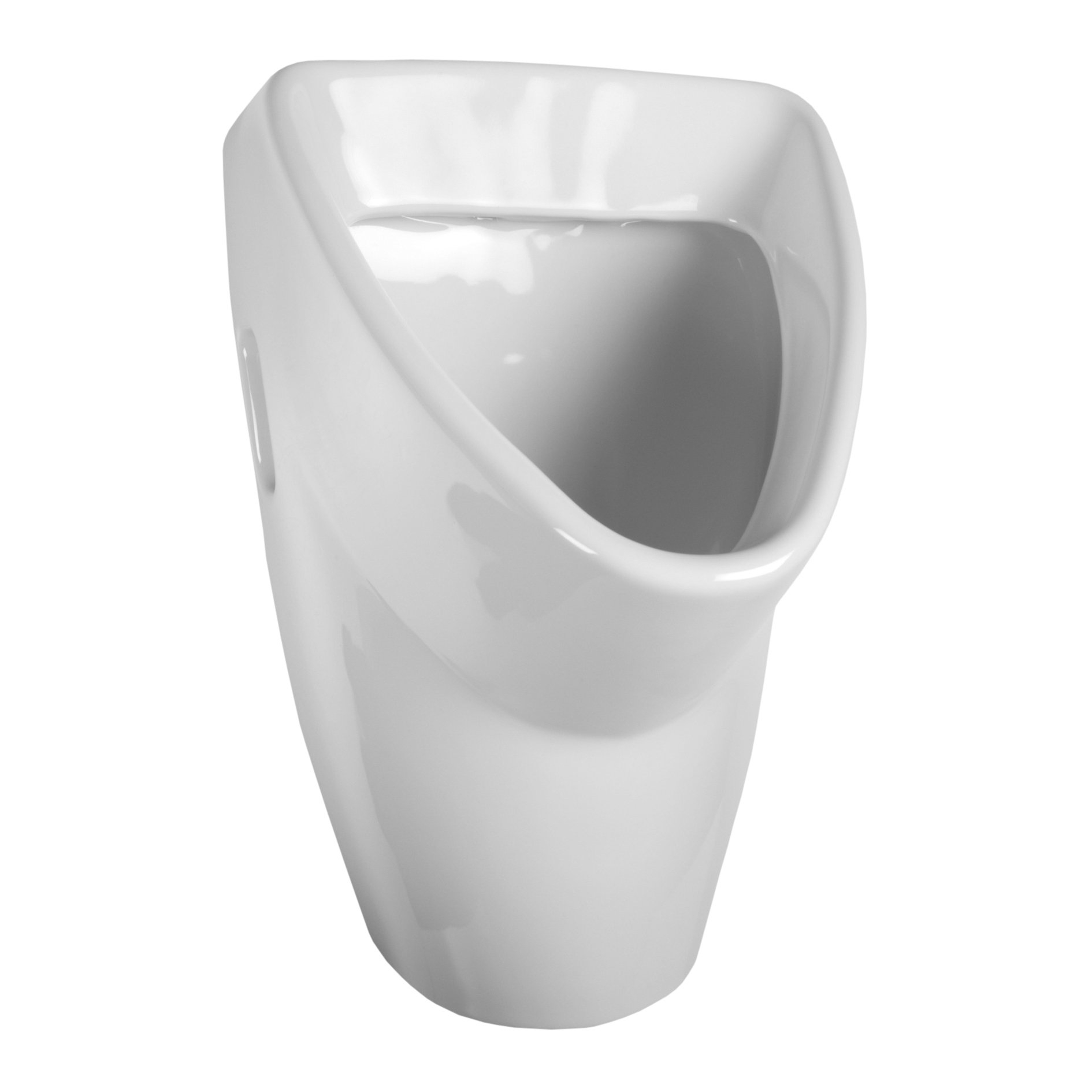

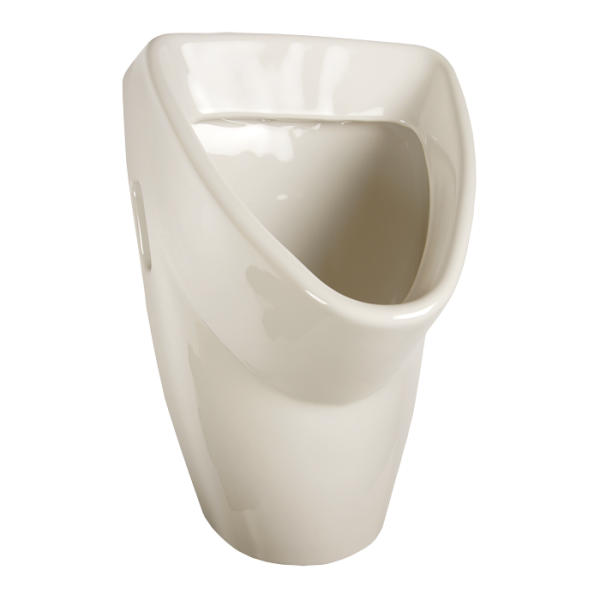

Urinal Livo with a radar flushing unit, 6 V

Characteristics

  • includes Bluetooth control (paid Sanela control app available for download)
  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 (without the necessity to dismantle the urinal from the wall)
  • automatic flushing after each 6 hours non-use
  • monitoring of battery capacity
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing



  • Order number: 11317
I am interested in more information:

Supply specification

SLP 31RB - Supply No. 11317 - ceramic urinal with the radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber seal, siphon, mounting set, paper drill template, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case

Technical information

Power supply: battery operated
Location: behind the urinal
Flushing unit: urinal included
Control: radar
Operating voltage: 6 V
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing

Downloads

Accessories

Plastic urinal screen orange colour -…
Plastic urinal screen red colour - kiwi…
Plastic urinal screen transparent…
Plastic urinal screen blue colour -…
Set of 4 pcs. of alcaline batteries
Remote control for an adjustment of…
Mounting frame for urinals and…
