SLP 12RZ

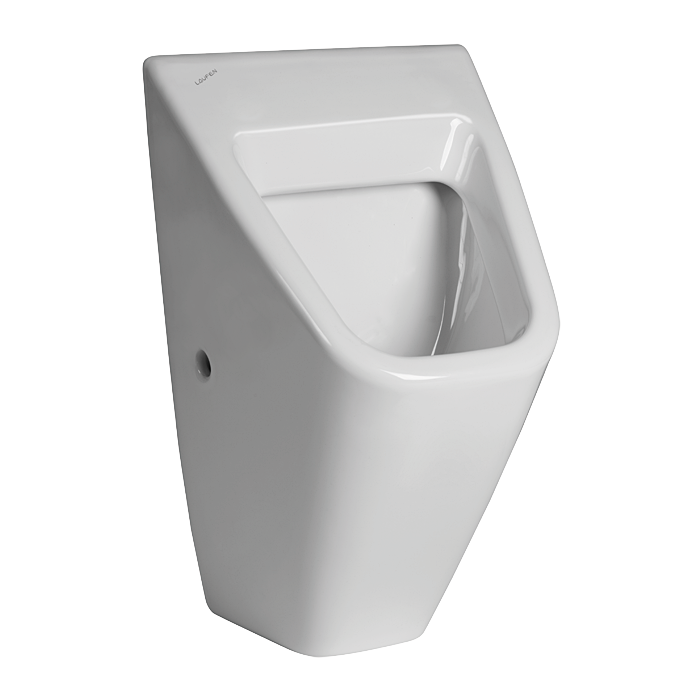

Urinal Vila without cover with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- economy flushing by 1 liter of water
- easy installation
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- water flow could be regulated by ball valve
- radar flushing unit recharges a water to the siphon after each flushing
- Order number: 01125
I am interested in more information:
Supply specification

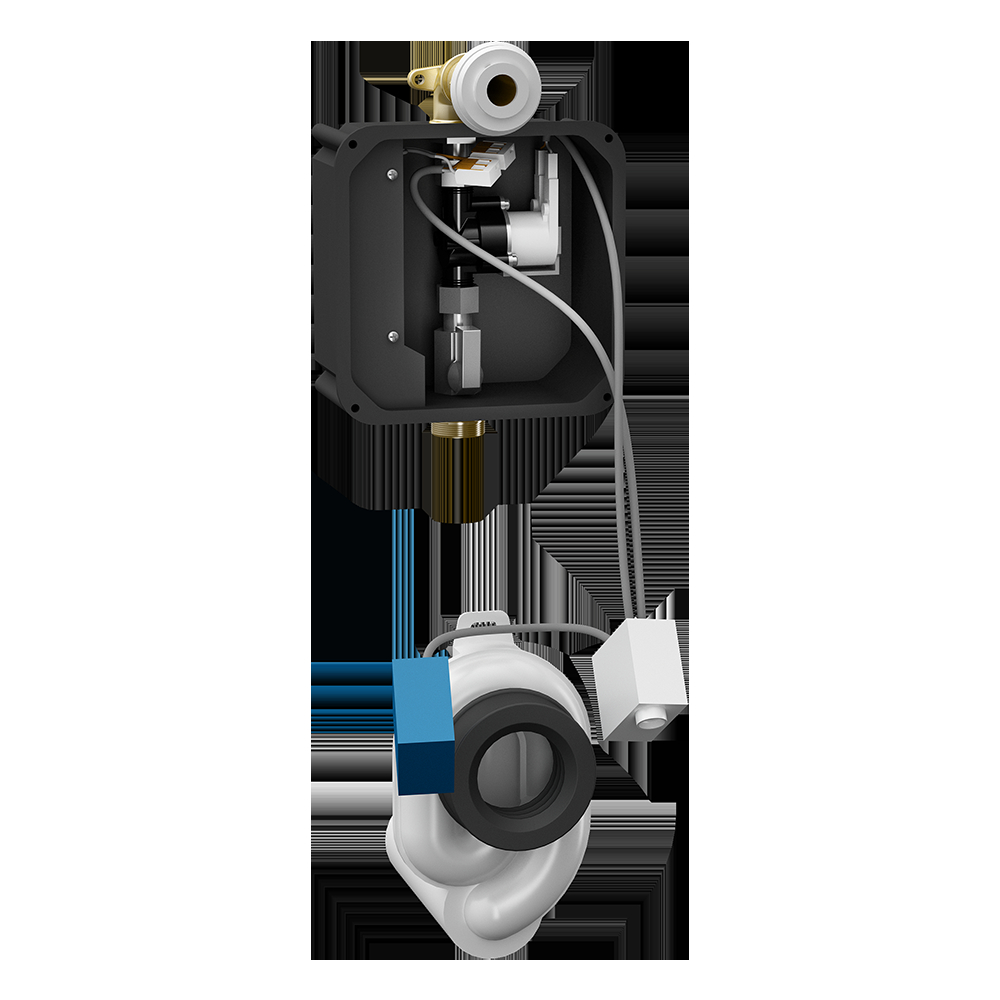

SLP 12RZ - Supply No. 01125 - ceramic urinal with the radar flushing unit including Bluetooth module, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, siphon, mounting set, power supply
Technical information
| Power supply: | 230V AC |
| Location: | behind the urinal |
| Flushing unit: | urinal included |
| Control: | radar |
| Mounting box dimension: | 140 x 140 x 75 mm |
| Operating voltage: | 230 V AC/50 Hz |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf.data) |
| Water inlet: | male thread G 3/4“ |
| Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Mounting instructions (3.43 MB)
- Catalogue list (724.6 kB)
- Mounting diagram (409.31 kB)
- 2D Drawing (170.65 kB)
