SLP 31RS

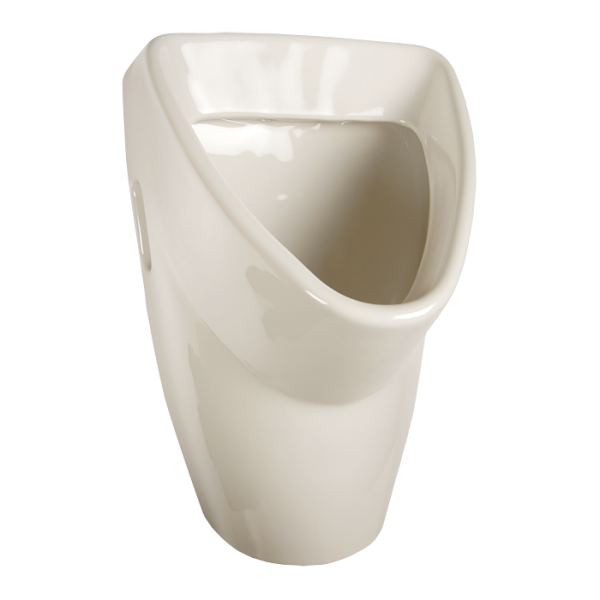

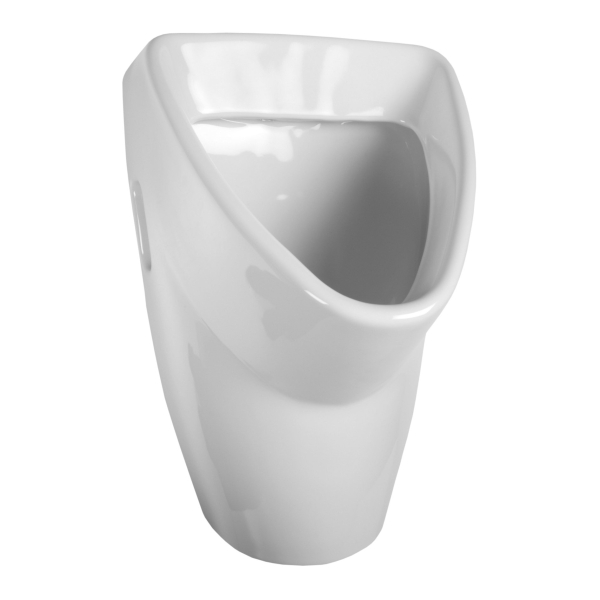

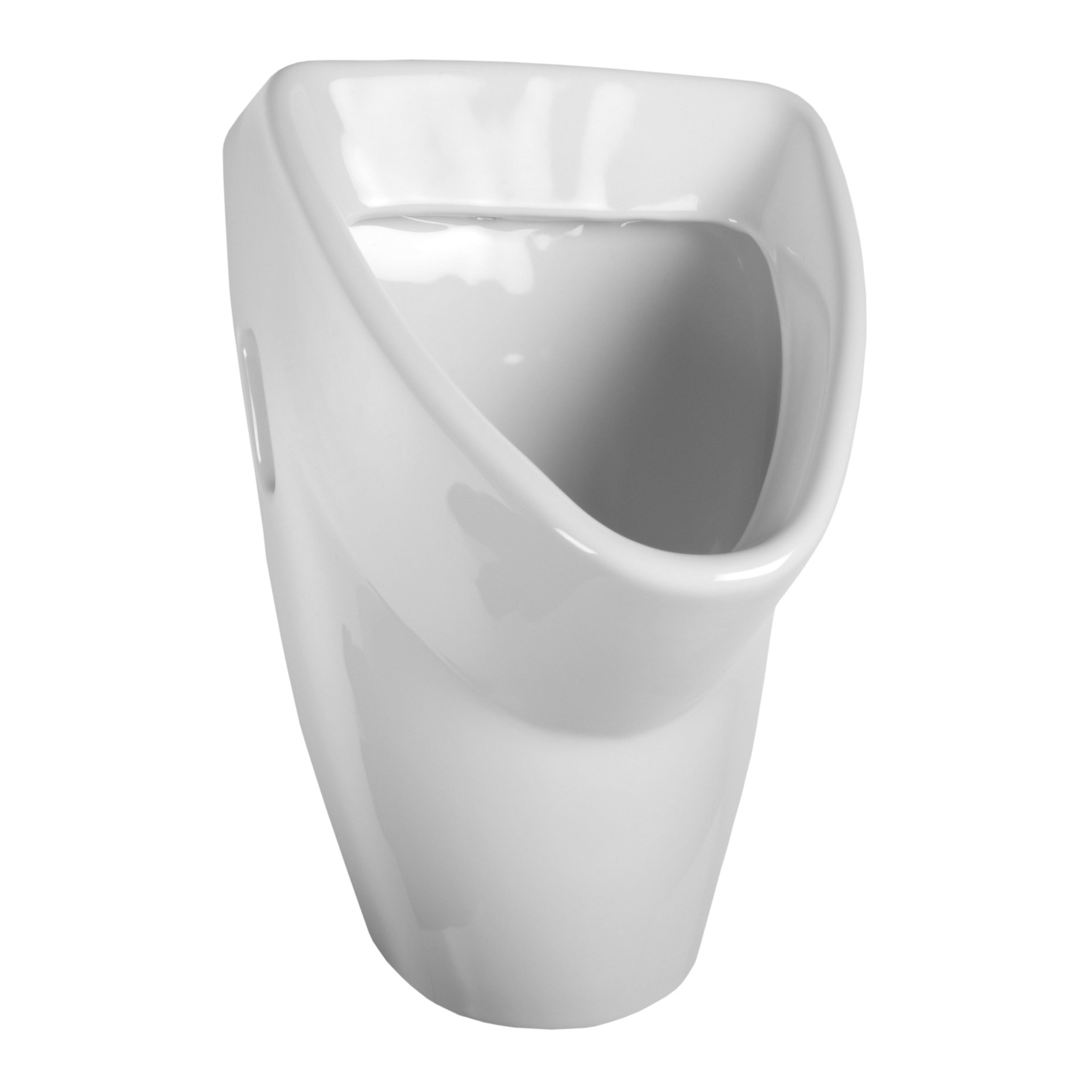

Urinal Livo with a radar flushing unit, 24 V DC

Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time from 0,5 to 15,5 sec.
  • parameters adjustment by remote control SLD 04 (without the necessity to dismantle the urinal from the wall)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 11315
Code SLP 31RS

Supply specification

SLP 31RS - Supply No. 11315 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber seal, siphon, mounting set, paper drill template

Technical information

Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
