SLP 59RB

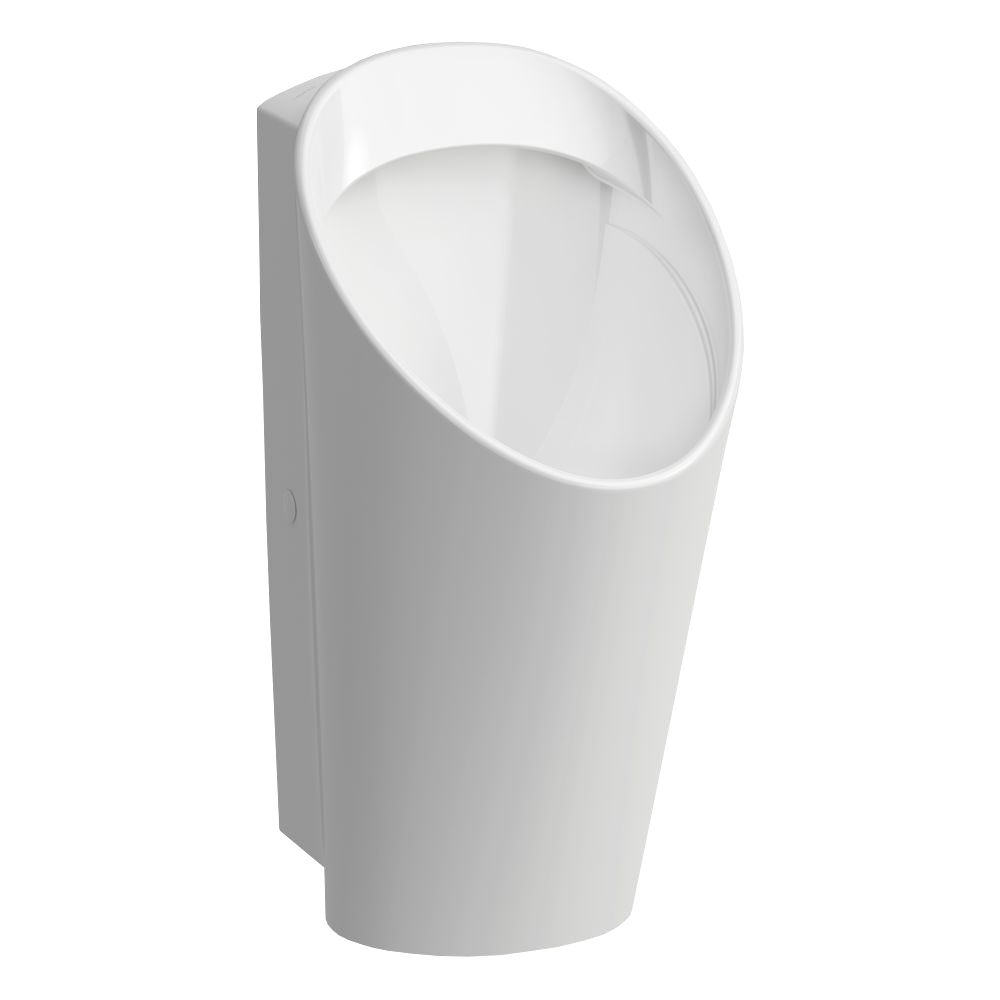

Urinal Lema Rimless with a radar flushing unit, 6 V

Characteristics

  • includes Bluetooth control (paid Sanela control app available for download)
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 04 remote control (acoustic indication of setting) without dismantling the urinal
  • automatic flushing after each 6 hours non-use
  • monitoring of battery capacity
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
  • Order number: 11597
I am interested in more information:

Supply specification

SLP 59RB - Supply No. 11597 - ceramic urinal with radar flush including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, mounting set, paper drill template, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case

Technical information

Power supply: battery operated
Location: behind the urinal
Flushing unit: urinal included
Control: radar
Operating voltage: 6 V
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
