SLP 25RZ

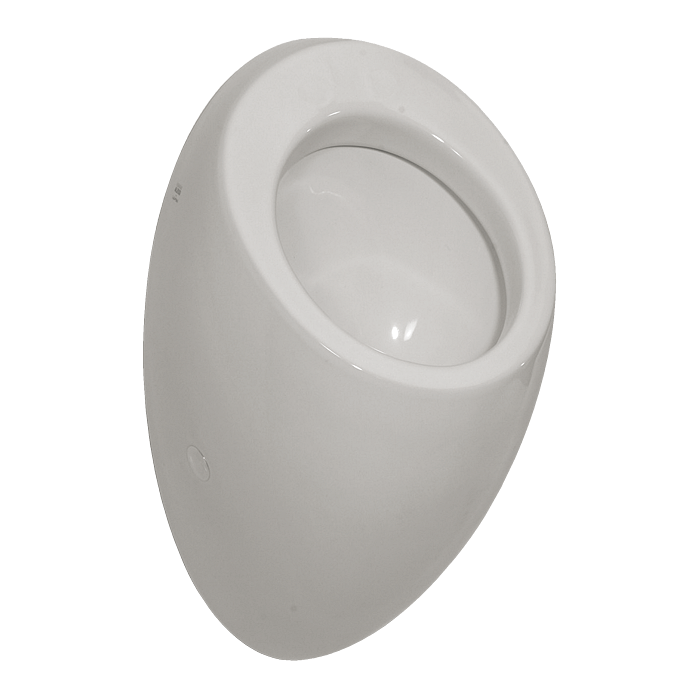

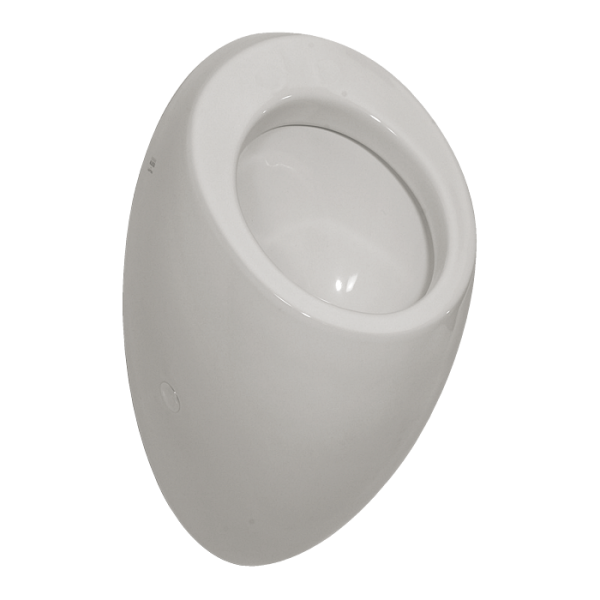

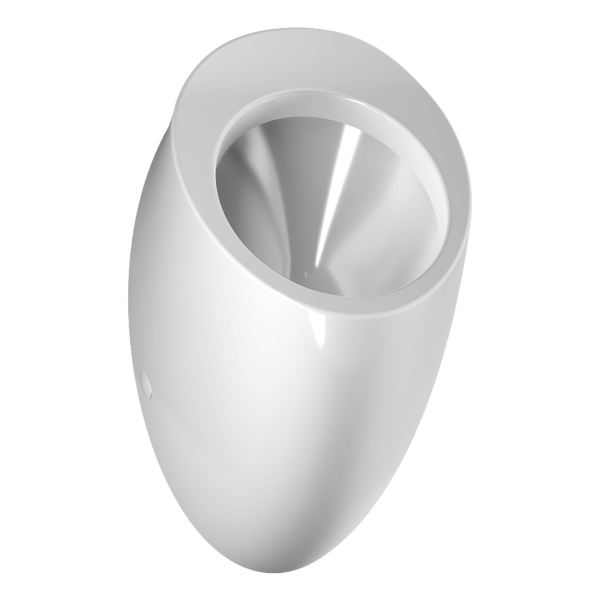

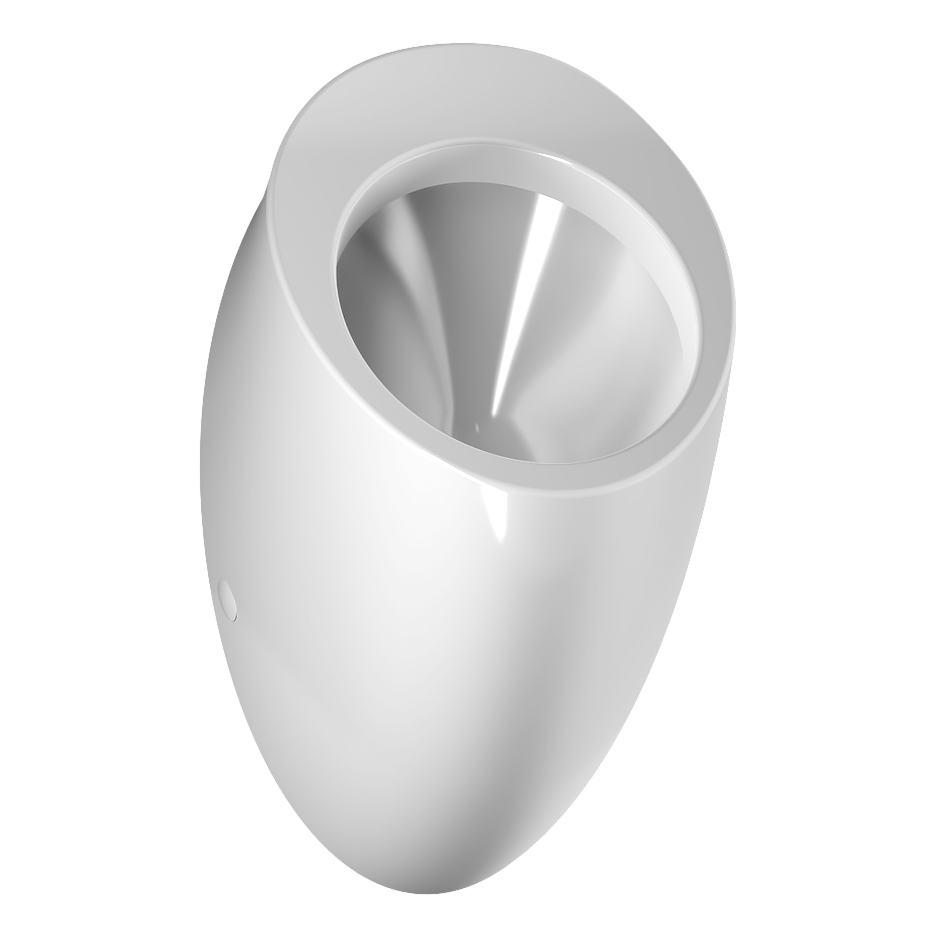

Urinal Alessi with a radar flushing unit and integrated power supply, 230 V AC

Characteristics

  • easy installation
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01255
Code SLP 25RZ

Supply specification

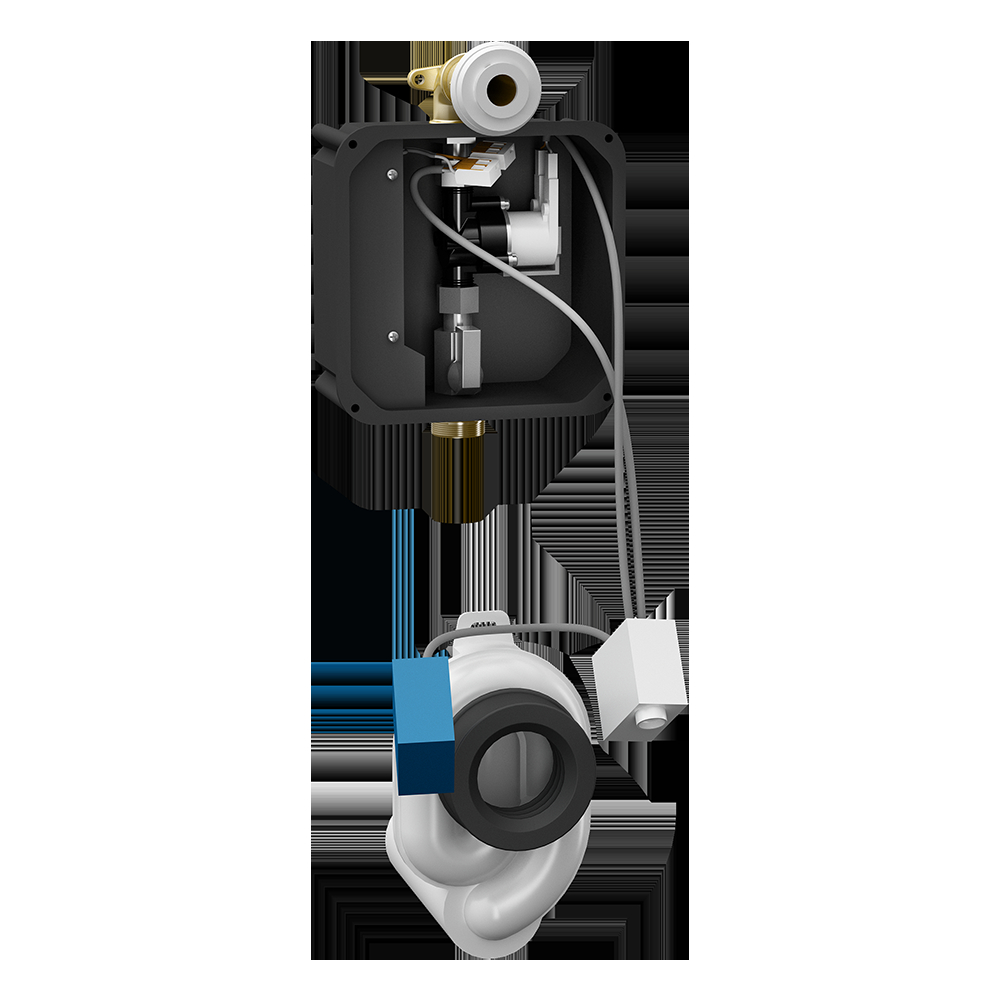

SLP 25RZ - Supply No. 01255 - ceramic urinal with radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, mounting set. siphon, power supply

Technical information

Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 230V AC/50Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
