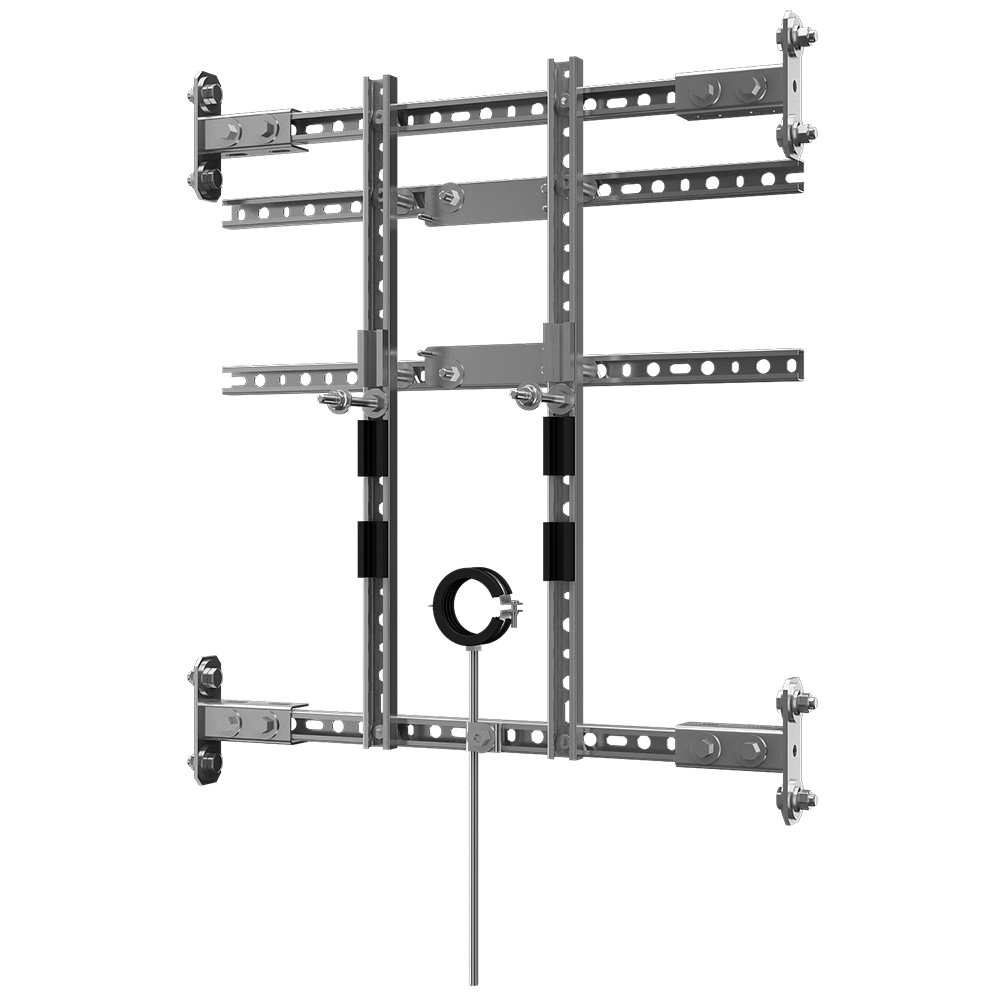

SLR 08
Mounting frame for urinals with mounting box
Characteristics
- is destined for plasterboard constructions
- is designed for ceramic urinals with in-wall flush
- that can be used up to axial distances of CW profiles max. 640 mm (profile can be shortened)
- surface finish - hot-dip galvanized steel
- mounting to CW profiles by screws with classic nuts
- mounting screws M8 and M10, waste pipe holder Ø 32 mm and Ø 50 mm
- Order number: 08080
I am interested in more information:
Supply specification
SLR 08 - Supply No. 08080 - mounting frame for ceramic urinals with in-wall flush
Downloads
- Mounting instructions (4.46 MB)
- Catalogue list (235.34 kB)
