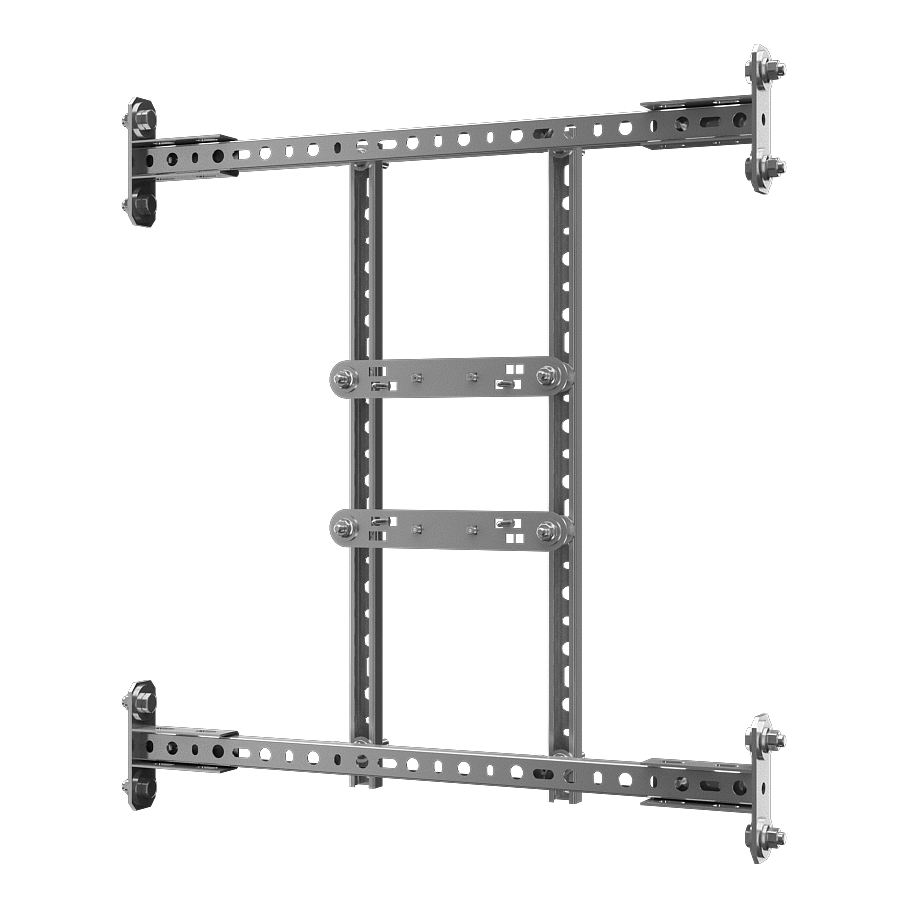

SLR 07
Mounting frame for installation of the mounting box
Characteristics
- is destined for plasterboard constructions
- is designed for mounting Sanela mounting boxes
- that can be used up to axial distances of CW profiles max. 640 mm (profile can be shortened)
- surface finish - hot-dip galvanized steel
- mounting to CW profiles by screws with classic nuts
- Order number: 08070
- EAN: 8591385080708
I am interested in more information:
Supply specification
SLR 07 - Supply No. 08070 - mounting frame for mounting Sanela mounting boxes
Downloads
- Mounting instructions (5.29 MB)
- Catalogue list (289.4 kB)
- 2D Drawing (448.08 kB)
