SLP 31RZ

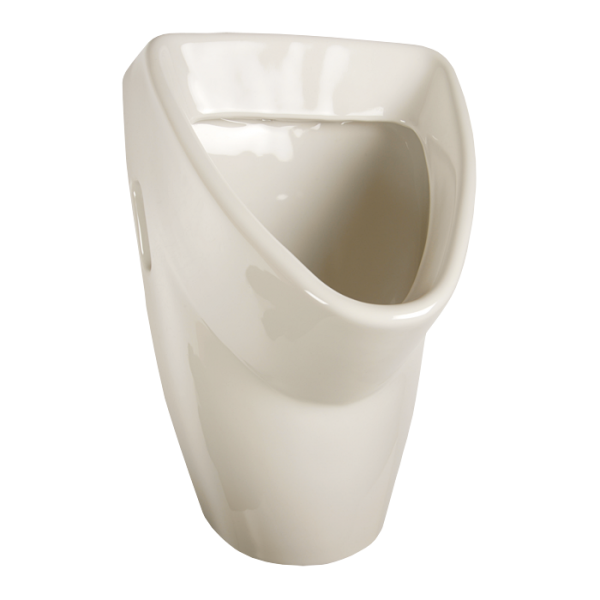

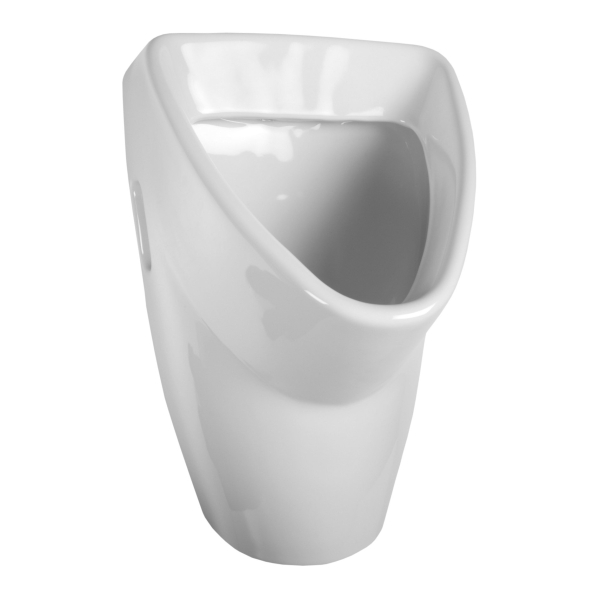

Urinal Livo with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 (without the necessity to dismantle the urinal from the wall)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the ball valve
- radar flushing unit recharges a water to the siphon after each flushing
- Order number: 01315
I am interested in more information:
Supply specification
SLP 31RZ - Supply No. 01315 - ceramic urinal with the radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber seal, siphon, mounting set, paper drill template, power supply
Technical information
Power supply: | 230V AC |
Location: | behind the urinal |
Flushing unit: | urinal included |
Control: | radar |
Operating voltage: | 230 V AC/50 Hz |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 18 l/min (inf. data) |
Water inlet: | male thread G 1/2“ |
Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Mounting instructions (4.33 MB)
- Catalogue list (287.41 kB)
- Mounting diagram (402.71 kB)
- 2D Drawing (435.39 kB)
