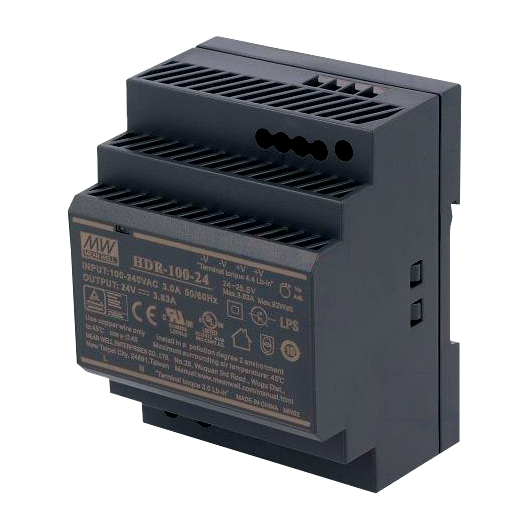

SLZ 04X
External power supply 24 V DC for mounting on DIN rail in switchboard, 100 W
Characteristics
- power supplies are destined only for a supply of the automatic sanitary electronics SANELA products (with the exception of battery operated products and products with an integrated power supply)
- power supplies SLZ 04Y, SLZ 04Z and SLZ 04X are destined for installation on DIN rail, into the switchboard
- Order number: 10049
I am interested in more information:
Supply specification
SLZ 04X - Supply No. 10049 - power supply on DIN rail, 85-240 V AC/24 V DC
Technical information
| Dimensions: | 90 x 58,4 x 70 |
| Power output: | stab. 24 V DC |
| Automatic washbasin taps and shower controls: | max. 15 (30*) valves |
| Automatic urinal flushing unit: | max. 15 valves |
| Automatic pressure toilet flushing units SLW 01xx: | max. 15 valves |
| Automatic cistern toilet flushing unit SLW 02xx: | 7 x servo-motor |
| Number of modules: | 4 |
| Power input: | 230 V AC/50Hz |
| Power: | 100 W |
* for basin taps with cartridge valve
Downloads
- Mounting instructions (1.32 MB)
- Catalogue list (196.18 kB)
- 2D Drawing (337.29 kB)
