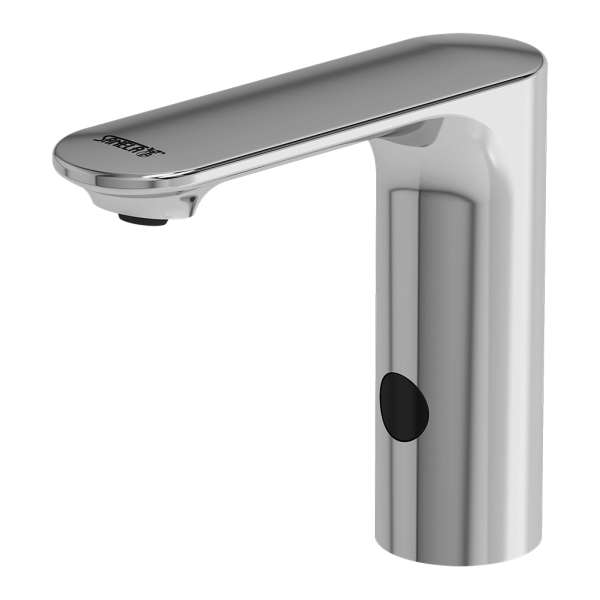

SLU 72
Automatic washbasin tap for cold and hot water, 24 V DC
New product
Characteristics
- includes Bluetooth control (paid Sanela Control app available for download)
- economical aerator, rate of flow 6 l/min
- hygienic flush
- is destined for cold and hot water, temperature is regulated by angle valves
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minutes of continuous flow
- START/STOP program
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 03
- Order number: 03722
- EAN: 8591385037221
I am interested in more information:
Supply specification
SLU 72B - Supply No. 03723 - faucet with an electronics including Bluetooth module, electromagnetic valve (1 pc.), Y piece fitting and hoses assembly with integrated check valves, connecting hoses, angle valve with filter and check valve (2 pcs.)
Technical information
| Dimensions: | 186 x 161 mm |
| Weight: | 1,88 kg |
| Operating voltage: | 24 V DC |
| Active range: | standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (4.45 MB)
- Catalogue list (135.02 kB)
- 2D Drawing (236.34 kB)
