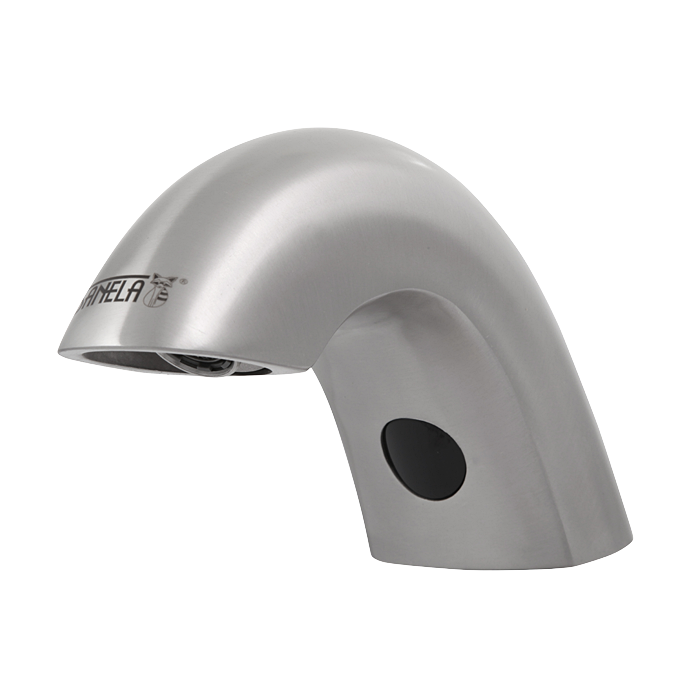

SLU 46B

Stainless steel washbasin tap for cold and hot water, 6 V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • lead free
  • SLU 46 is destined for cold and hot water, temperature is regulated by angle valves
  • water if flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • Order number: 03465

Supply specification

SLU 46B - Supply No. 03465 - faucet with an electronics, electromagnetic valve (1 pcs.), Y-piece, connecting hoses, angle valve with filter and check valve (2 pcs.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case

Technical information

material: stainless steel
temperature regulation: for cold and hot water
power supply: battery operated
control: infra-red
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Active range: standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Set of 4 pcs. of alcaline batteries
Economical aerator 3,8 l/min for SLU…
Economical aerator1,9 l/min for SLU…
Remote control for an adjustment of…
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
