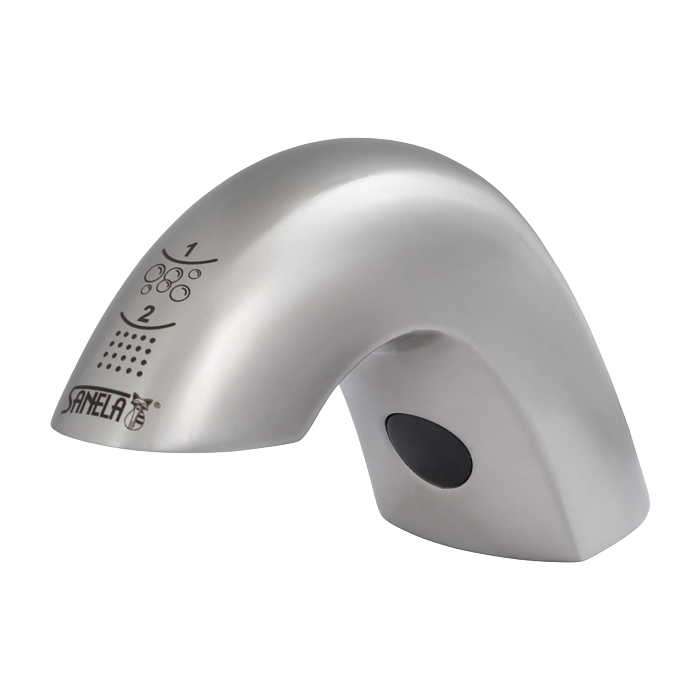

SLU 45MD
Washbasin tap for cold or premixed water with integrated soap dispenser, 1 l soap canister, 230 V AC
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- easy soap refilling
- soap economy
- SLU 45MD is destined for cold or premixed water
- suitable for private places; container for soap 1 l
- system reacts to the hands in front of the sensor
- parameter adjustment using by the remote control SLD 03
- Order number: 03466
I am interested in more information:
Supply specification
SLU 45MD - Supply No. 03466 - faucet with an electronics, connecting hoses, angle valve with filter (1 pc.), electromagnetic valve (1 pc.), peristaltic pump for liquid soap and container for liquid soap 1 l, SLZ 07 - wall socket power supply 230 V AC/24 V DC
Technical information
Material: | stainless steel |
Temperature regulation: | for cold or premixed water |
Power supply: | 230V AC |
Control: | infra-red |
Operating voltage: | 230 V AC |
Active range: | 0,14 - 0,2 m |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 6 l/min. (inf. Data) |
Water inlet: | male thread G 1/2“ |
Recommended soap viscosity: | 10 mPa*s - 5000 mPa*s (don‘t use chemical solvents and disinfection) |
Downloads
- Mounting instructions (2.91 MB)
- Catalogue list (175.51 kB)
- 2D Drawing (261.84 kB)
