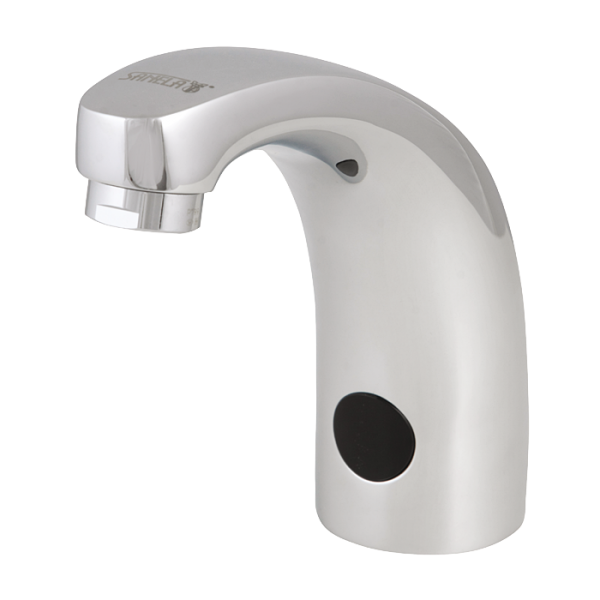

SLU 02BT
Automatic washbasin tap with thermostatic valve, 6 V
Characteristics
- includes Bluetooth control (Sanela Control app available for download)
- economical aerator, flow rate 6 l/min
- hygienic flush
- is intended for supplying hot and cold water, temperature adjustment manually by thermostatic valve in the range of 35 - 65 °C
- responds to the presence of hands in the sensing zone with immediate water activation
- water shuts off after hands are removed and the set time elapses (can be set in the range 0.25 – 7.75 s)
- safety function: water shuts off after 5 minutes
- monitoring of battery capacity
- option to switch to START/STOP mode
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 03
- the product meets the water consumption requirements for Class 1 according to the EU Water Label program, ensuring efficient water use
- Order number: 13023
I am interested in more information:
Supply specification
SLU 02BT - Supply No. 13023 - spout with electronics including Bluetooth module, solenoid valve (1 pc.), thermostatic valve, connecting hose, angle valve with filter and check valve (2 pcs.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
| Material: | chrome |
| Temperature regulation: | with thermostat |
| Power supply: | battery operated |
| Control: | infra-red |
| Dimensions: | 158 x 136 mm |
| Weight: | 2,47 kg |
| Supply voltage: | 6 V |
| Power input: | 3 W |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years 100 uses per day) |
| Active range: | standard 0,13 - 0,19 m, in START/STOP mode 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Flow rate: | 6 l/min. (inf. data) |
| Water inlet: | external thread G 1/2" |
Downloads
- Mounting instructions (5.61 MB)
- Catalogue list (144.63 kB)
- 2D Drawing (157.96 kB)
