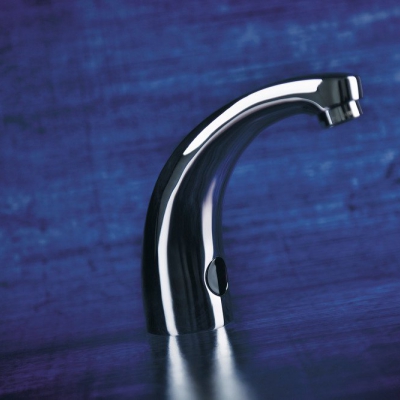

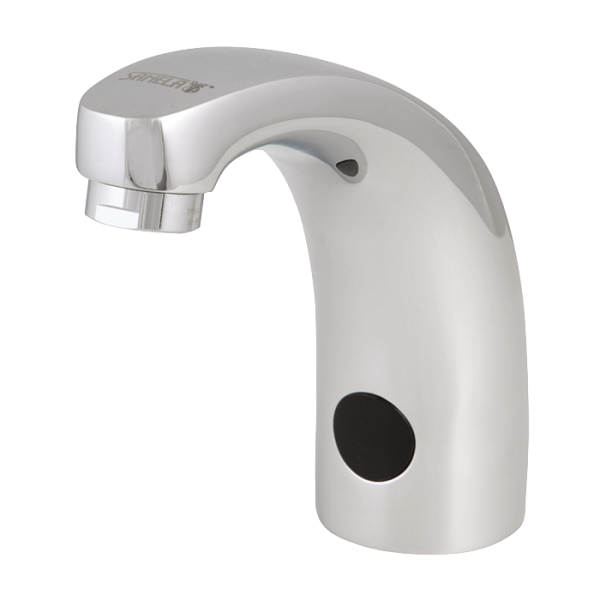

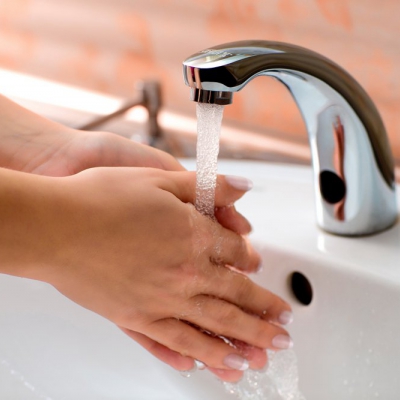

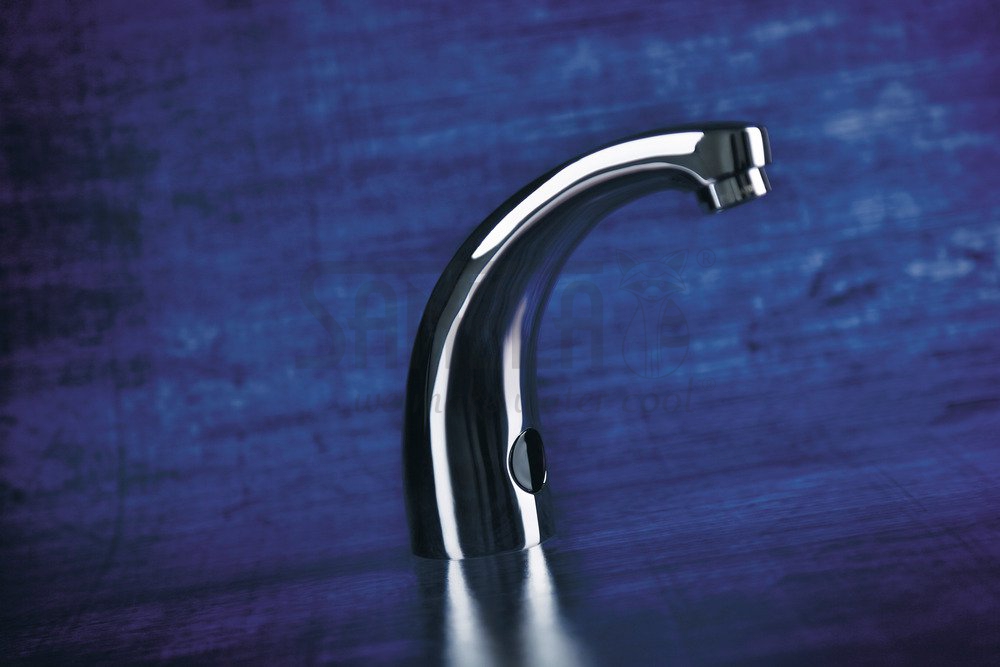

SLU 01NB
Washbasin tap for cold or premixed water, 6 V
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- SLU 01N is destined for cold or premixed water
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 23019
Supply specification
SLU 01NB - Supply No. 23019 - faucet with an electronics, electromagnetic valve (1 pc.), connecting hoses, angle valve with filter (1 pc.), 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
| material: | chrome |
| temperature regulation: | for cold or premixed water |
| power supply: | battery operated |
| control: | infra-red |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day) |
| Active range: | standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
Downloads
- Mounting instructions (529.76 kB)
- Catalogue list (144.26 kB)
- 2D Drawing (157.96 kB)
