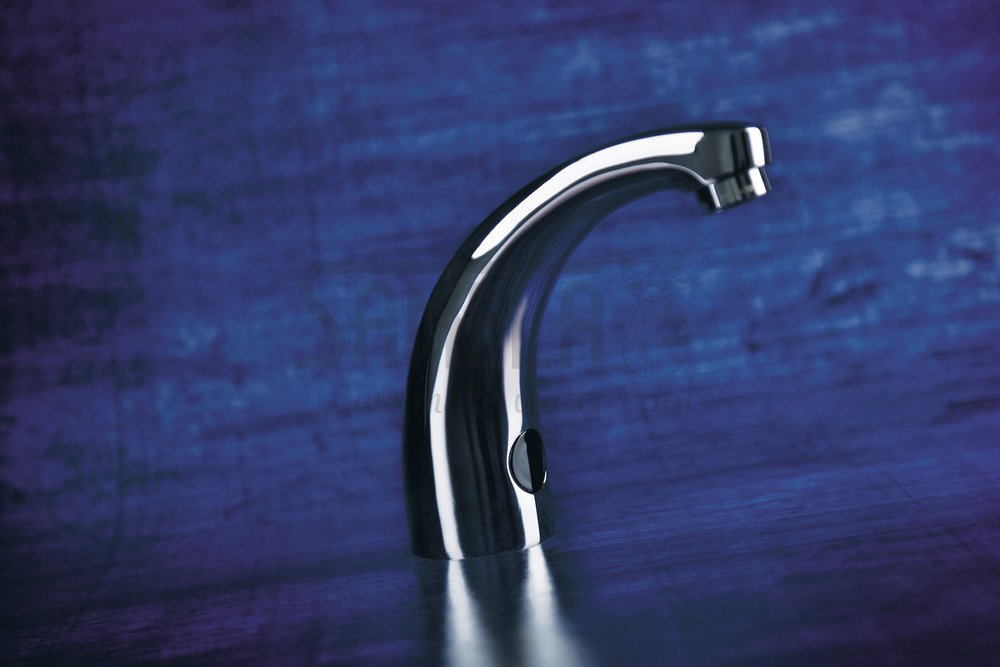

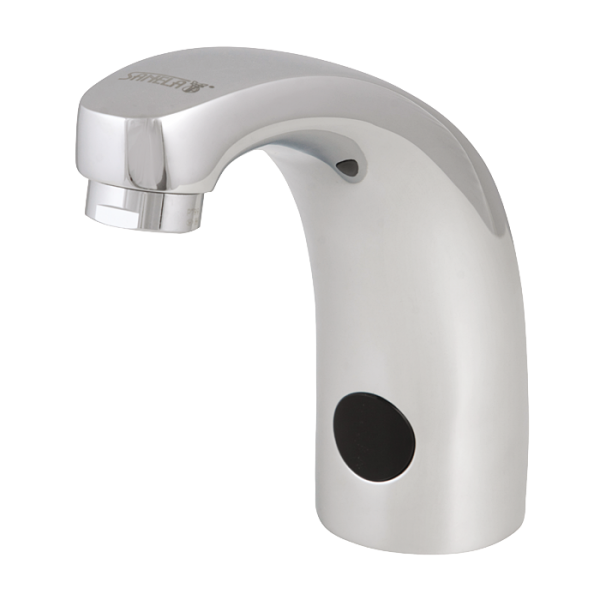

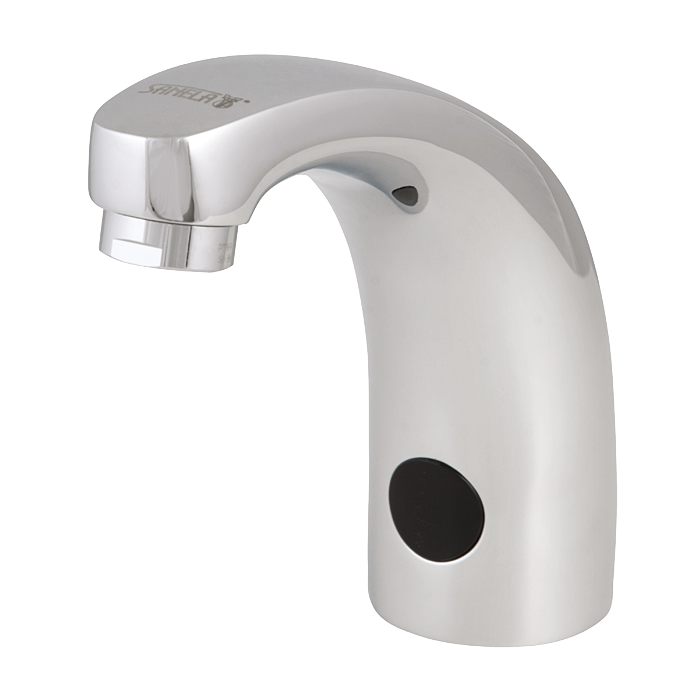

SLU 02N
Washbasin tap for cold and hot water, 24 V DC
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- SLU 02N is destined for cold and hot water, temperature is regulated by angle valves
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- Order number: 23028
I am interested in more information:
Supply specification
SLU 02N - Supply No. 23028 - faucet with an electronics, electromagnetic valve (1 pc.), Y-piece, connecting hoses, angle valve with filter and check valve (2 pcs.)
Technical information
Material: | chrome |
Temperature regulation: | for cold and hot water |
Power supply: | 24V DC |
Control: | infra-red |
Operating voltage: | 24 V DC |
Active range: | standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 6 l/min. (inf. data) |
Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (2.25 MB)
- Catalogue list (200.17 kB)
- 2D Drawing (157.96 kB)
Accessories
Related Products
