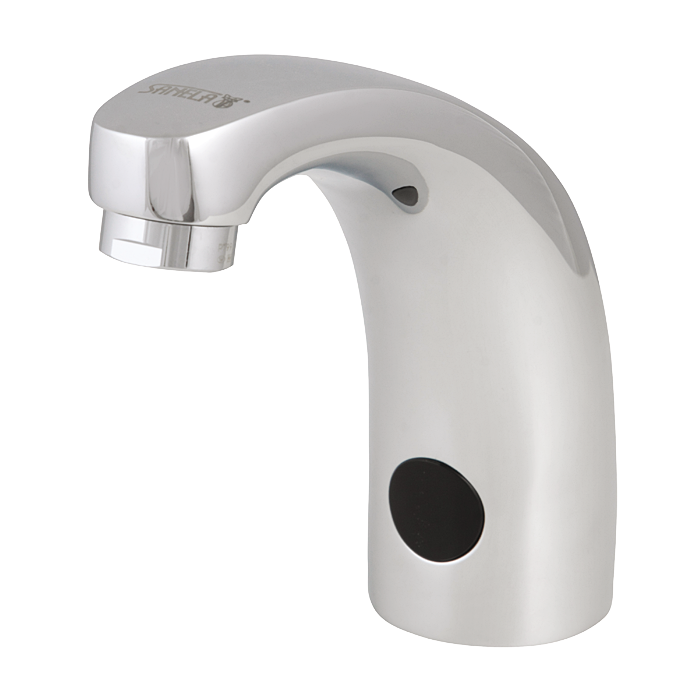

SLU 02T
Automatic washbasin tap with thermostatic valve, 24 V DC
Characteristics
- includes Bluetooth control (Sanela Control app available for download)
- economical aerator, flow rate 6 l/min
- hygienic flush
- is intended for supplying hot and cold water, temperature adjustment manually by thermostatic valve in the range of 35 - 65 °C
- responds to the presence of hands in the sensing zone with immediate water activation
- water shuts off after hands are removed and the set time elapses (can be set in the range 0.25 – 7.75 s)
- safety function: water shuts off after 5 minutes
- option to switch to START/STOP mode
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth) or the SLD 03
- the product meets the water consumption requirements for Class 1 according to the EU Water Label program, ensuring efficient water use
- Order number: 13026
I am interested in more information:
Supply specification
SLU 02T - Supply No. 13026 - spout with electronics including Bluetooth module, solenoid valve (1 pc.), thermostatic valve, connecting hose, angle valve with filter and check valve (2 pcs.)
Technical information
| Material: | chrome |
| Temperature regulation: | with thermostat |
| Power supply: | 24V DC |
| Control: | infra-red |
| Dimensions: | 158 x 136 mm |
| Weight: | 1,82 kg |
| Power input: | 7 W |
| Active range: | standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | external thread G 1/2" |
Downloads
- Mounting instructions (5.3 MB)
- Catalogue list (139.13 kB)
- 2D Drawing (157.96 kB)
