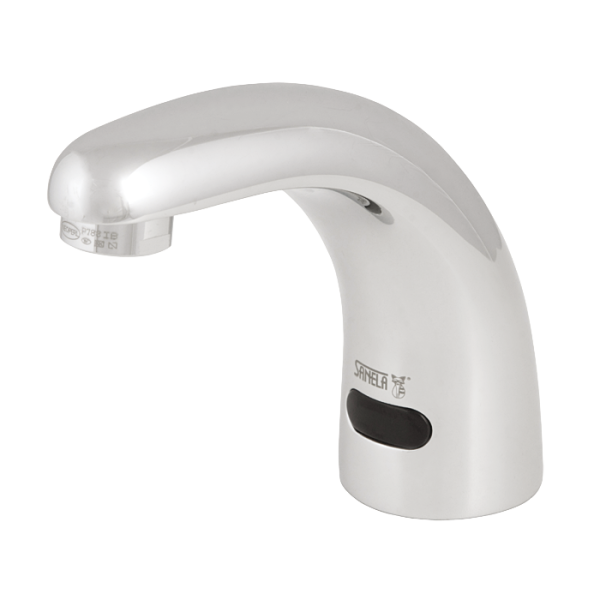

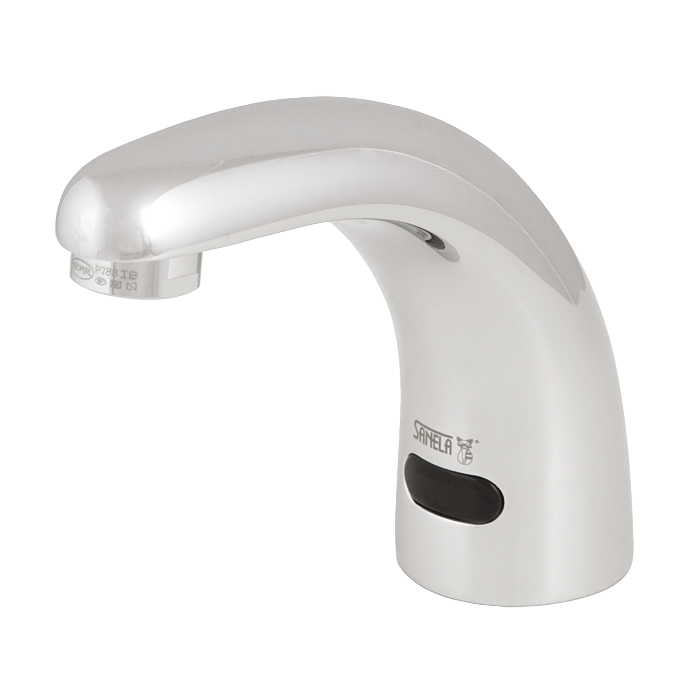

SLU 22

Washbasin tap for cold and hot water, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • SLU 22 is destined for cold and hot water, temperature is regulated by angle valves
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
Order number 03220
Code SLU 22

Supply specification

SLU 22 - Supply No. 03220 - faucet with electronics, holder of electronics, electromagnetic valve (1 pc.), Y-piece, connecting hoses, angle valve with filter and check valve (2 pcs.)

Technical information

Operating voltage: 24 V DC
Active range: standard 0,13 - 0,19 m, START/STOP program 0,05 - 0,15 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
  • Print

Accessories

Remote control for an adjustment of…
External power supply 230/24 V DC
External power supply 230/24 V DC
External power supply 24 V DC for mounting…
External power supply 24 V DC for mounting…
External power supply 24 V DC for mounting…
External power supply for 1 washbasin tap…
