SLP 70RS
Radar flushing unit for urinal Villeroy Boch Omnia Pro 750700, 24 V DC
Characteristics
- radar flushing unit for urinal O.novo (Omnia Pro) (Villeroy & Boch) No. 750700
- includes Bluetooth control (paid Sanela control app available for download)
- economy flushing by 1 liter of water
- during installation is necessary to blind additional inlet holes by silicone plugs (see the mounting instructions)
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the ball valve
- radar flushing unit recharges a water to the siphon after each flushing
- Order number: 11705
I am interested in more information:
Supply specification

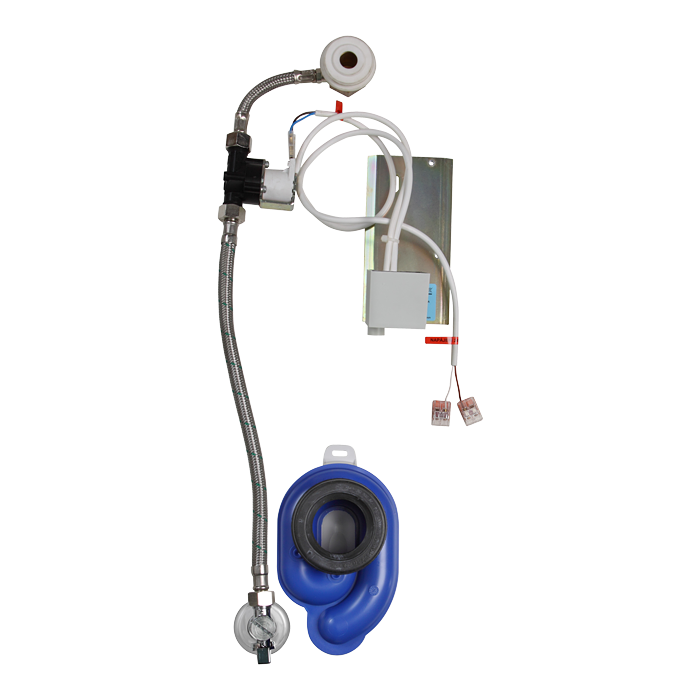

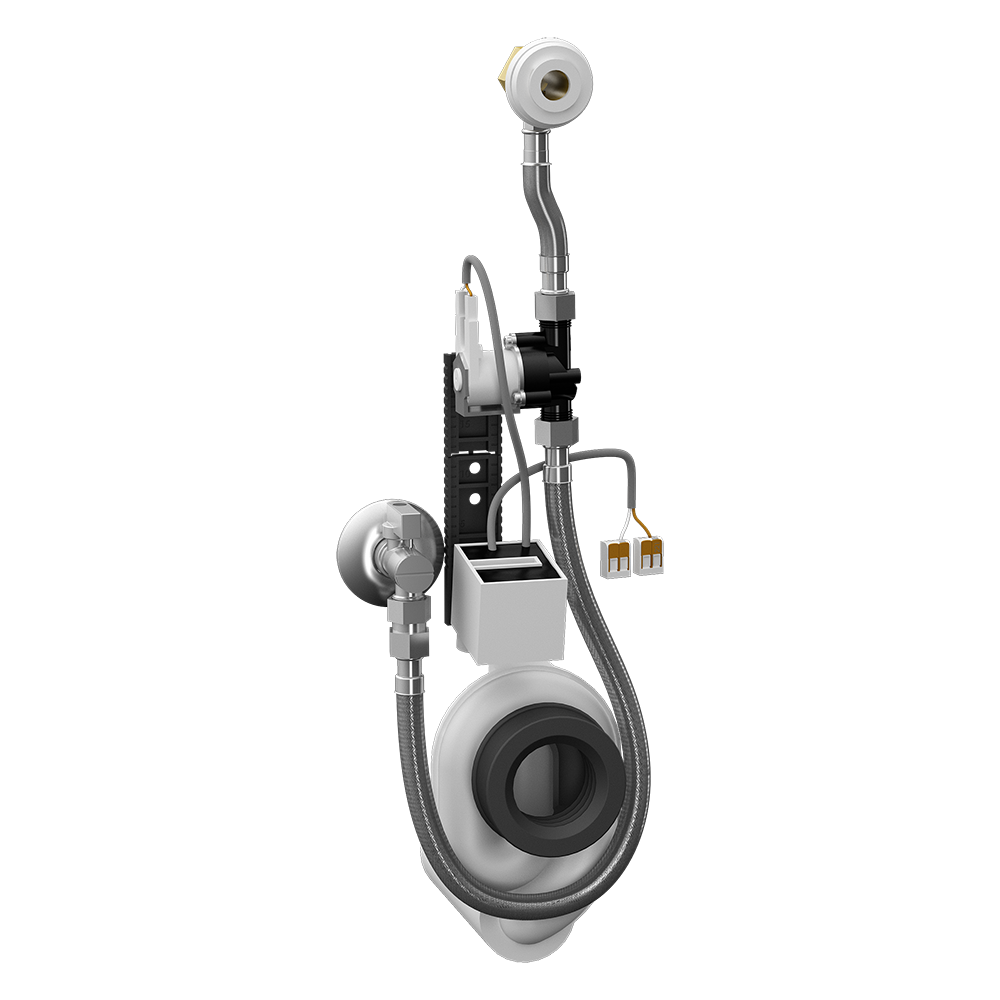

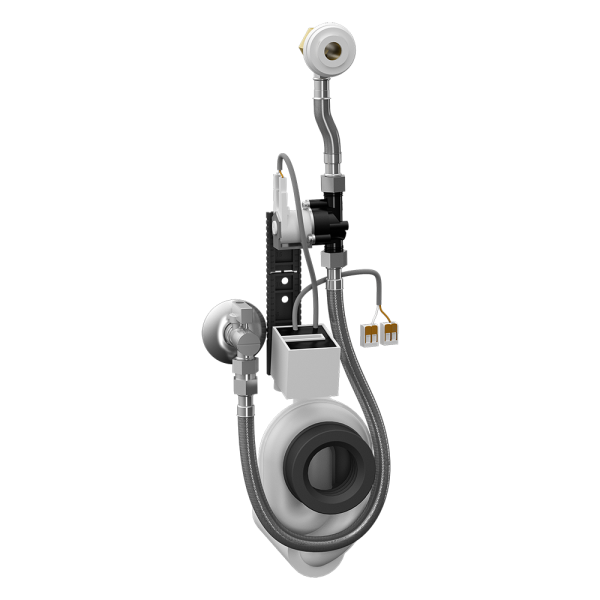

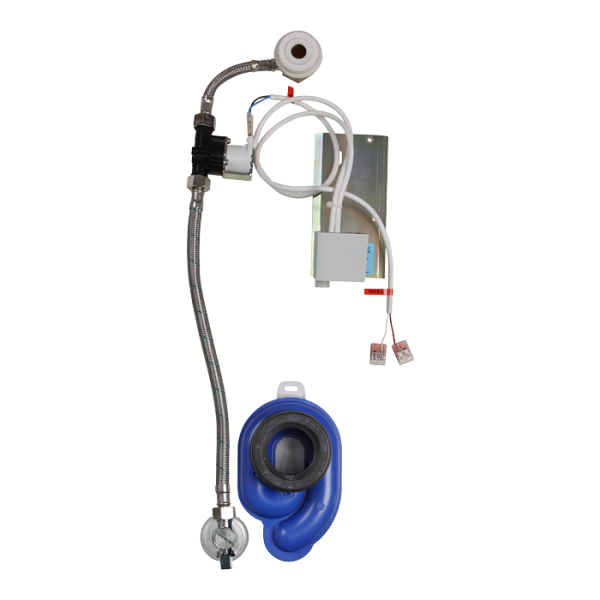

SLP 70RS - Supply No. 11705 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, silicone plug (2 pcs.), connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, paper drill template
Technical information
Power supply: | 24V DC |
Location: | behind the urinal |
Flushing unit: | without urinal |
Control: | radar |
Operating voltage: | 24 V DC |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 18 l/min (inf. data) |
Water inlet: | male thread G 1/2“ |
Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Mounting instructions (3.69 MB)
- Catalogue list (371.46 kB)
- Mounting diagram (421.98 kB)
- 2D Drawing (147.15 kB)
