SLP 68RB

Radar flushing unit for urinal Villeroy Boch Architectura 557400, 6 V

Characteristics

  • radar flushing unit for urinal Architectura (Villeroy & Boch) No. 557400
  • economy flushing by 1 liter of water
  • during installation is necessary to blind additional inlet holes by silicone plugs (see the mounting instructions)
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • monitoring of battery capacity
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
  • Order number: 11687

Supply specification

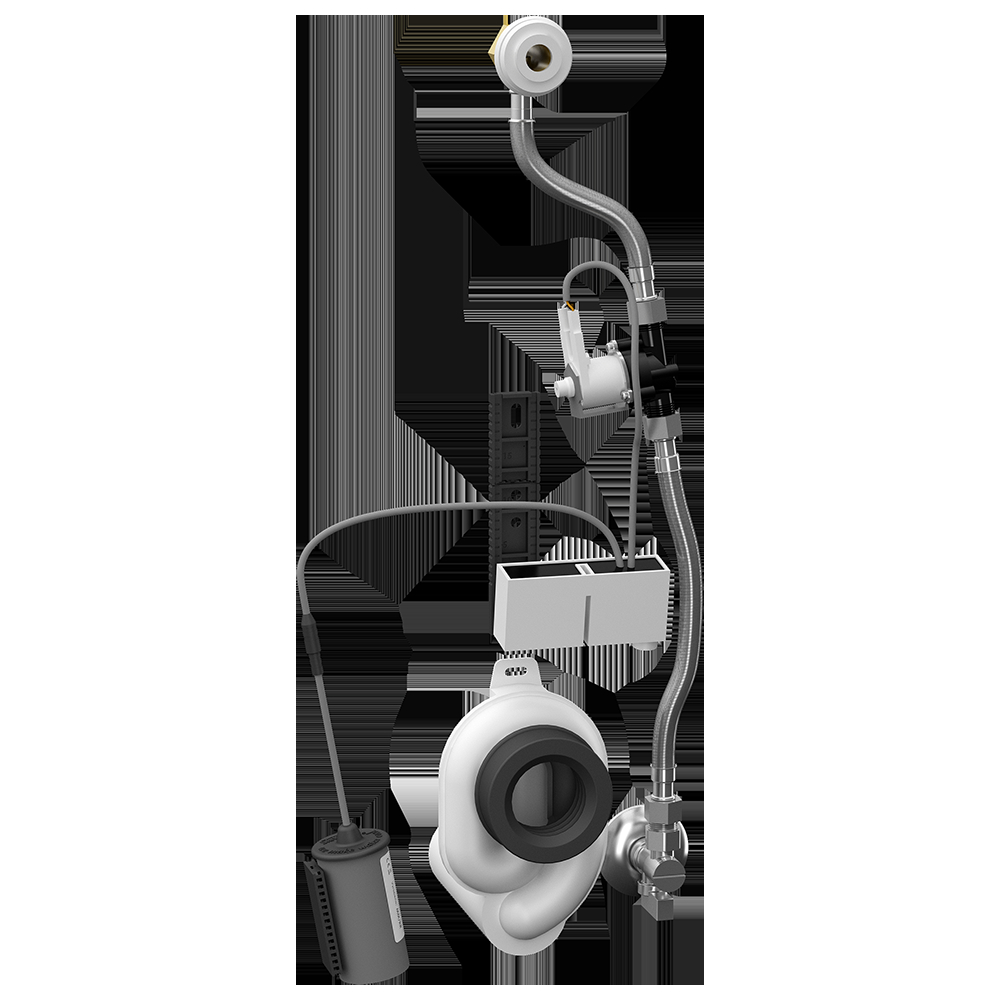

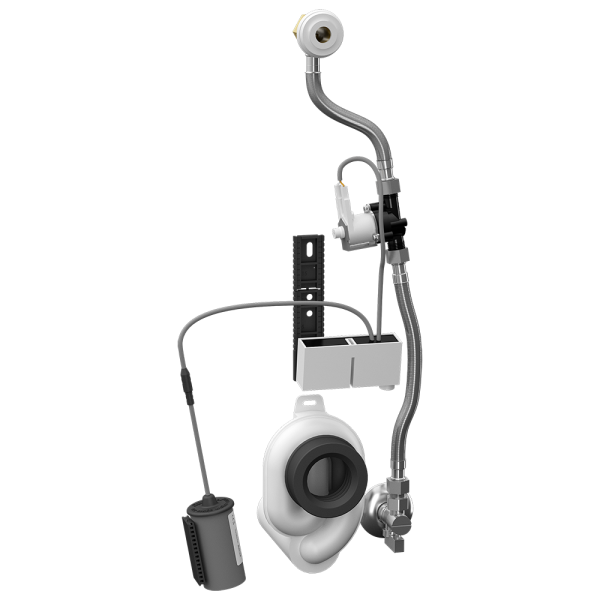

SLP 68RB - Supply No. 11687 - radar flushing unit on the mounting rail, electromagnetic valve, silicone plug (2 pcs.), connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, paper drill template, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case

Technical information

power supply: battery operated
location: behind the urinal
flushing unit: without urinal
control: radar
Operating voltage: 6 V
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
