SLP 54RZ
Radar flushing unit with integrated power supply on the mounting rail for D-Code urinal, 230 V AC
Characteristics
- radar flushing unit for urinal D-Code (Duravit) No. 082930
- includes Bluetooth control (paid Sanela control app available for download)
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
- Order number: 01545
I am interested in more information:
Supply specification

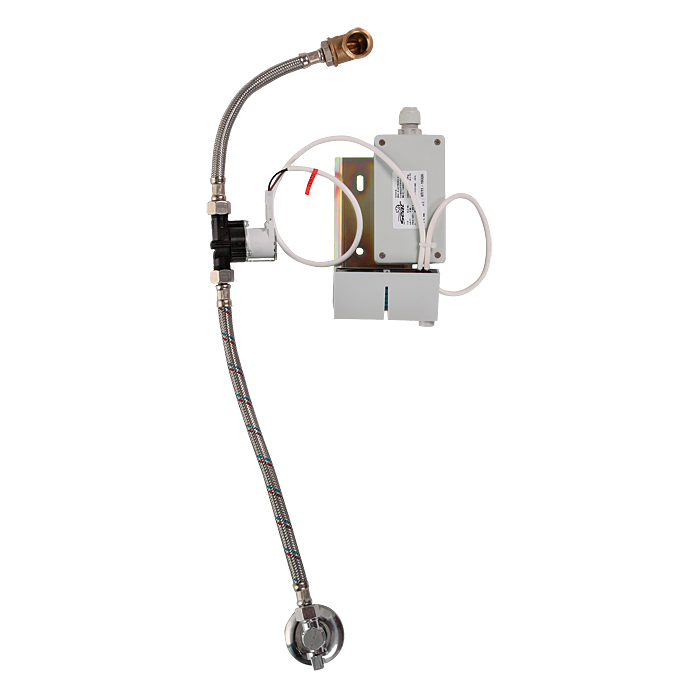

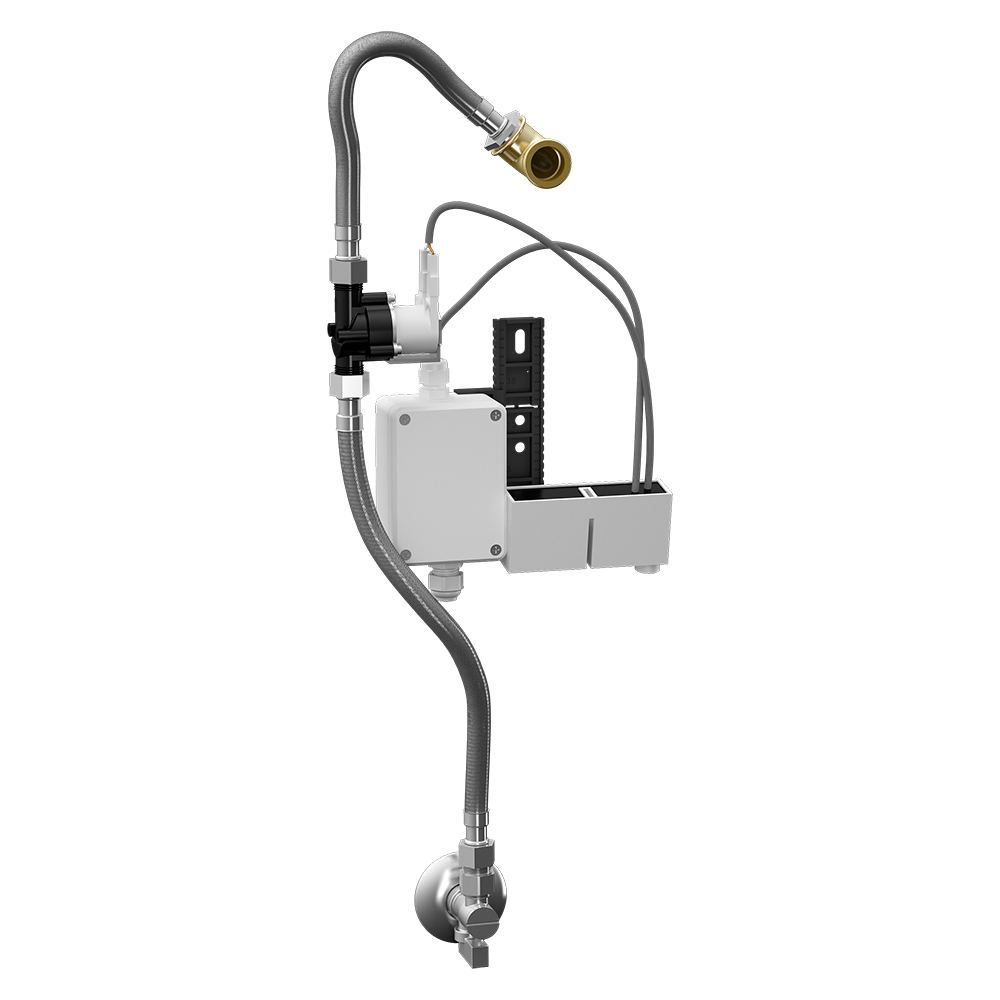

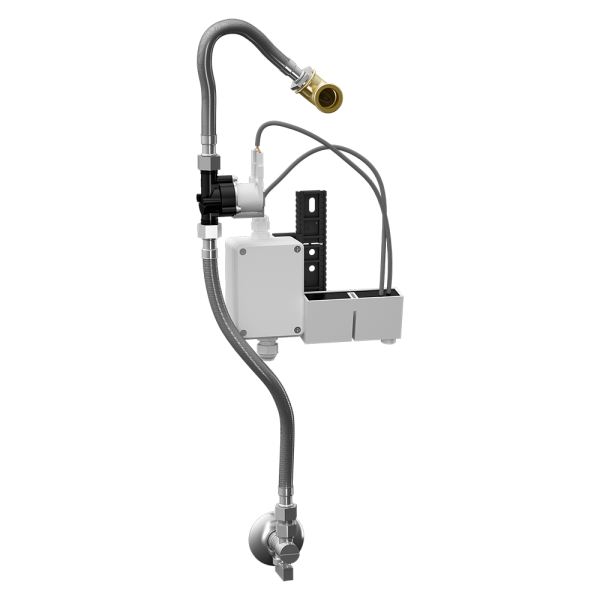

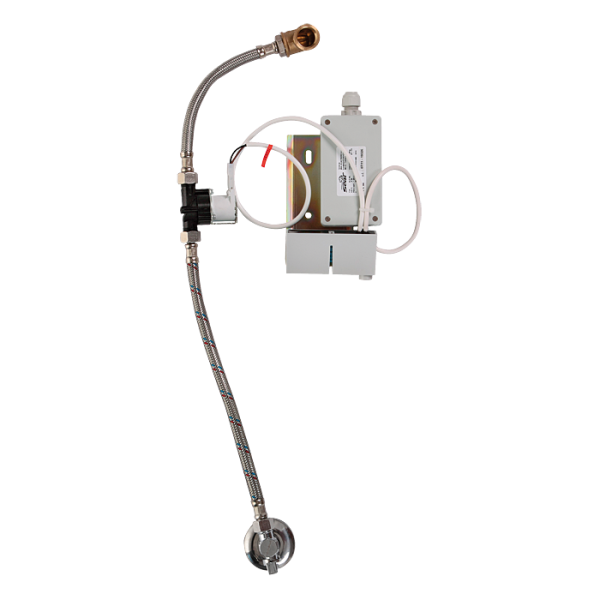

SLP 54RZ - Supply No. 01545 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, paper drill template, power supply
Technical information
| Power supply: | 230V AC |
| Location: | behind the urinal |
| Flushing unit: | without urinal |
| Control: | radar |
| Operating voltage: | 230 V AC/50 Hz |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf. data) |
| Water inlet: | male thread G 1/2“ |
| Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Mounting instructions (4.12 MB)
- Catalogue list (338.73 kB)
- Mounting diagram (402.91 kB)
- 2D Drawing (92.1 kB)
