SLP 36RZ

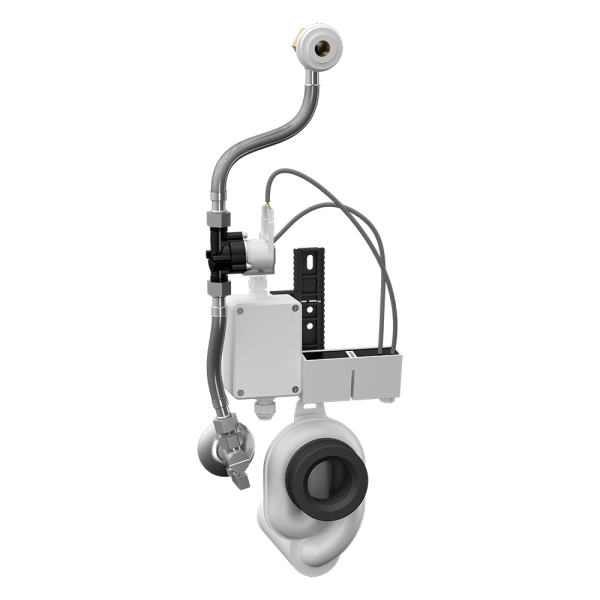

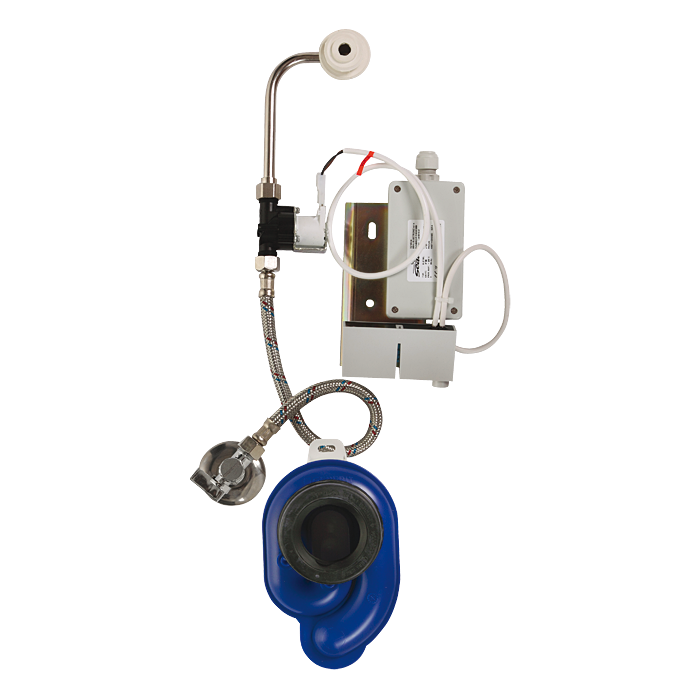

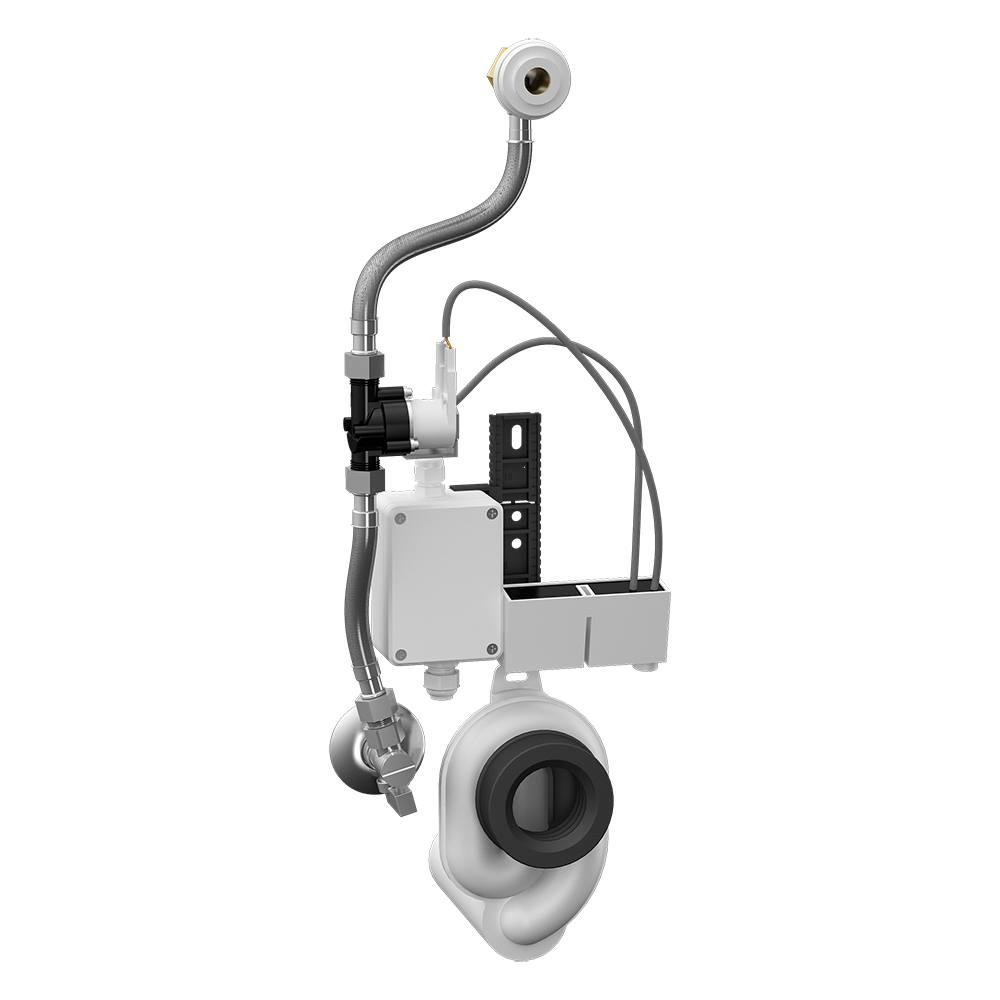

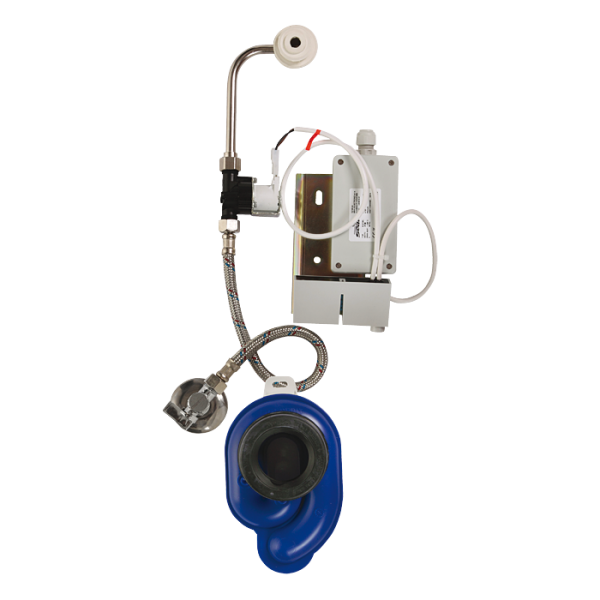

Radar flushing unit on the mounting rail for urinal Ecco (Golf) with integrated power supply, 230 V AC

Characteristics

  • radar flushing unit for urinal Ecco (Golf) K5538 (Ideal Standard)
  • includes Bluetooth control (Sanela Control app available for download)
  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
  • Order number: 01365
I am interested in more information:

Supply specification

SLP 36RZ - Supply No. 01365 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, drill template, power supply

Technical information

Power supply: 230V AC
Location: behind the urinal
Flushing unit: without urinal
Control: radar
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
