SLP 07S

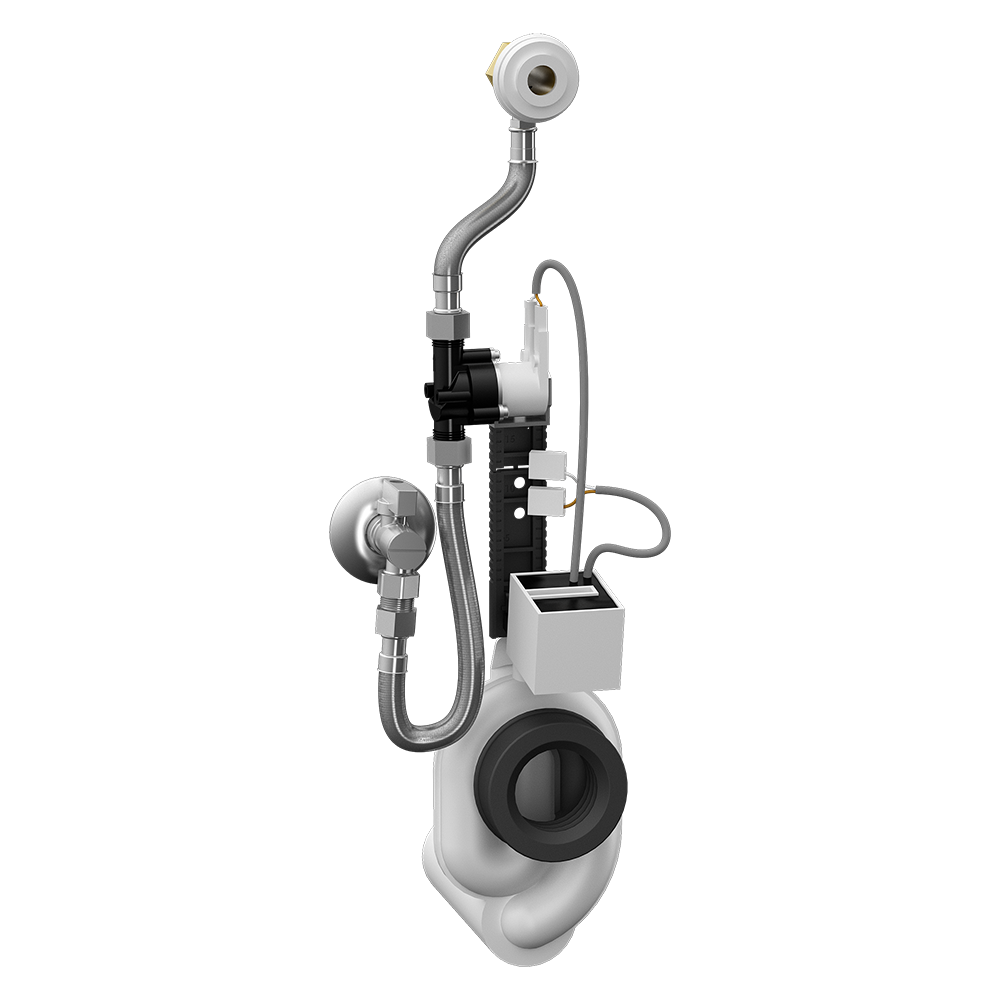

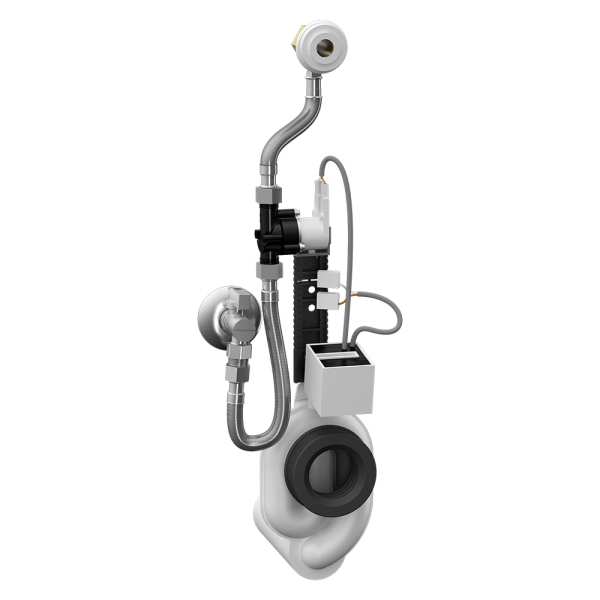

Radar flushing unit on the mounting rail, 24 V DC
Characteristics
- Radar Flushing Unit for urinals NOVA PRO FELIX 26 000; NOVA PRO ALEX 66 000; RENOVA Nr. 1 1 235 300; NOVA PRO M36 000; RENOVA Nr.1 PLAN 235 100 (Kolo)
- includes Bluetooth control (Sanela Control app available for download)
- economical flushing with one liter of water
- the product meets the DNSH requirements for water consumption when the saving (ECO) modes are enabled
- easy installation using a template
- the entire flushing system is located behind the urinal
- responds only to urinal use (evaluates changes, that occur inside the urinal during fluid flow)
- flush time is adjustable from 0.5 to 15.5 s
- parameter setting and communication with electronics via Sanela Control application (Bluetooth) or remote controller SLD 04 without the need to dismantle the urinal (acoustic indication of setting)
- automatic flushing 6 hours after the last activation of the valve
- possibility to regulate water flow with an angle valve
- after flushing, the flush valve performs a short refill of water into the siphon
- the product meets the water consumption parameters for class 1. according to the criteria of the EU Water Label program
- Order number: 11071
I am interested in more information:
Supply specification

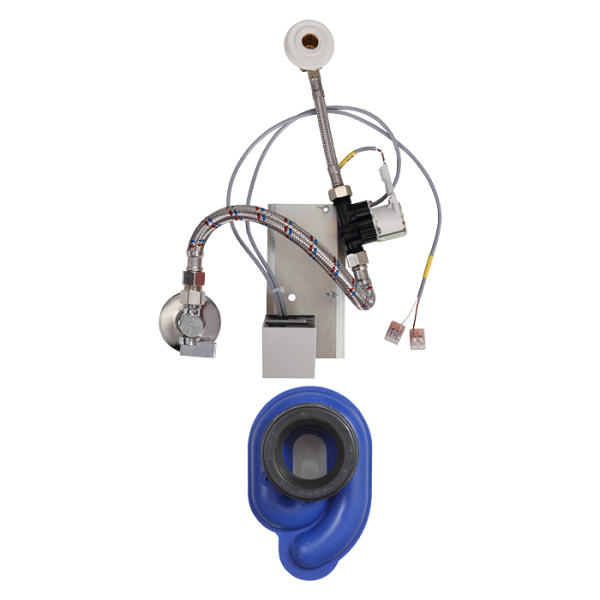

SLP 07S - Supply No. 11071 - radar flushing unit including Bluetooth module on mounting rail, solenoid valve, connecting hose, angle valve with filter and check valve, inlet fitting with a rubber sealling siphon, installation template
Technical information
| Power supply: | 24V DC |
| Location: | behind the urinal |
| Flushing unit: | without urinal |
| Control: | radar |
| Power input: |
8 W |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf. data at pressure 0.3 MPa) |
| Flush volume: |
1 l (at pressure 0.3 MPa
and factory setting) |
| Water inlet: | external thread G 1/2" |
| Water outlet: | outlet fitting
with gasket |
Downloads
- Mounting instructions (4.89 MB)
- Catalogue list (486.96 kB)
- Mounting diagram (1.14 MB)
- 2D Drawing (209.94 kB)
