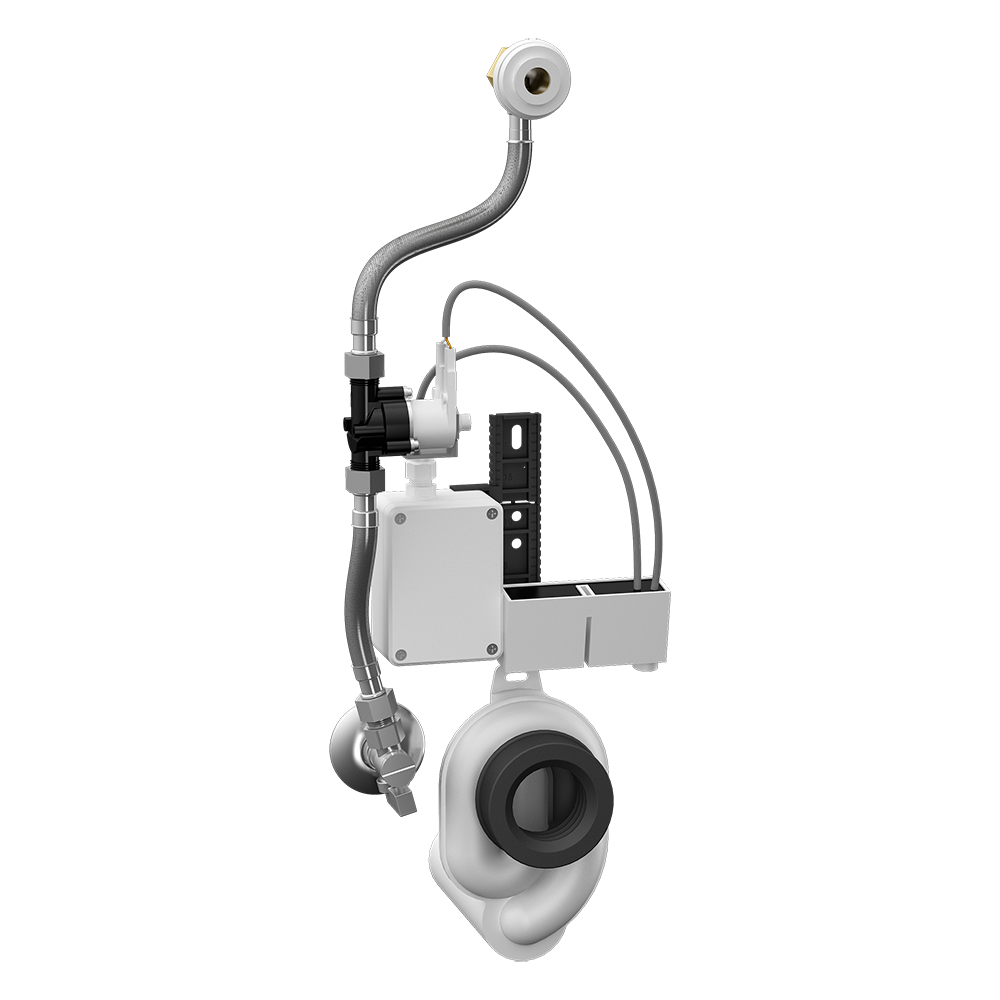

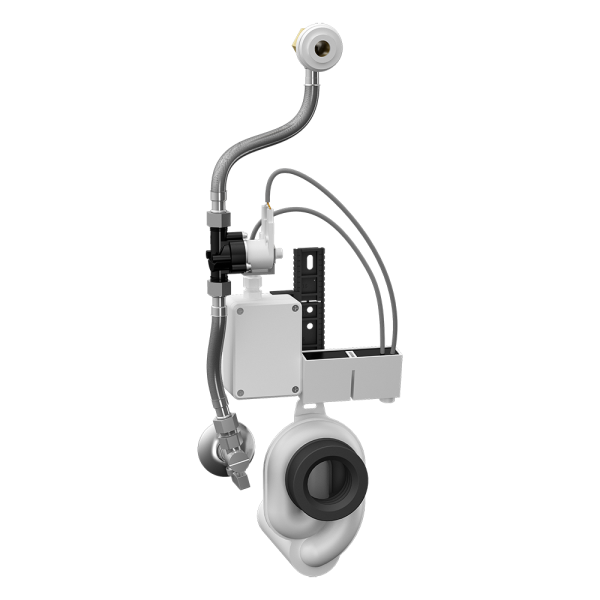

SLP 36RB
Radar flushing unit on the mounting rail for urinal Ecco (Golf), 6 V
Characteristics
- radar flushing unit for urinal Ecco (Golf) K5538 (Ideal Standard)
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- monitoring of battery capacity
- possibility to regulate a water flow by the ball valve
- radar flushing unit recharges a water to the siphon after each flushing
- Order number: 11367
I am interested in more information:
Supply specification
SLP 36RB - Supply No. 11367 - radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, drill template, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
| Power supply: | battery operated |
| Location: | behind the urinal |
| Flushing unit: | without urinal |
| Control: | radar |
| Operating voltage: | 6 V |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 18 l/min (inf. data) |
| Water inlet: | male thread G 1/2“ |
| Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Mounting instructions (725.81 kB)
- Catalogue list (335.93 kB)
- Mounting diagram (403.22 kB)
- 2D Drawing (84.62 kB)
