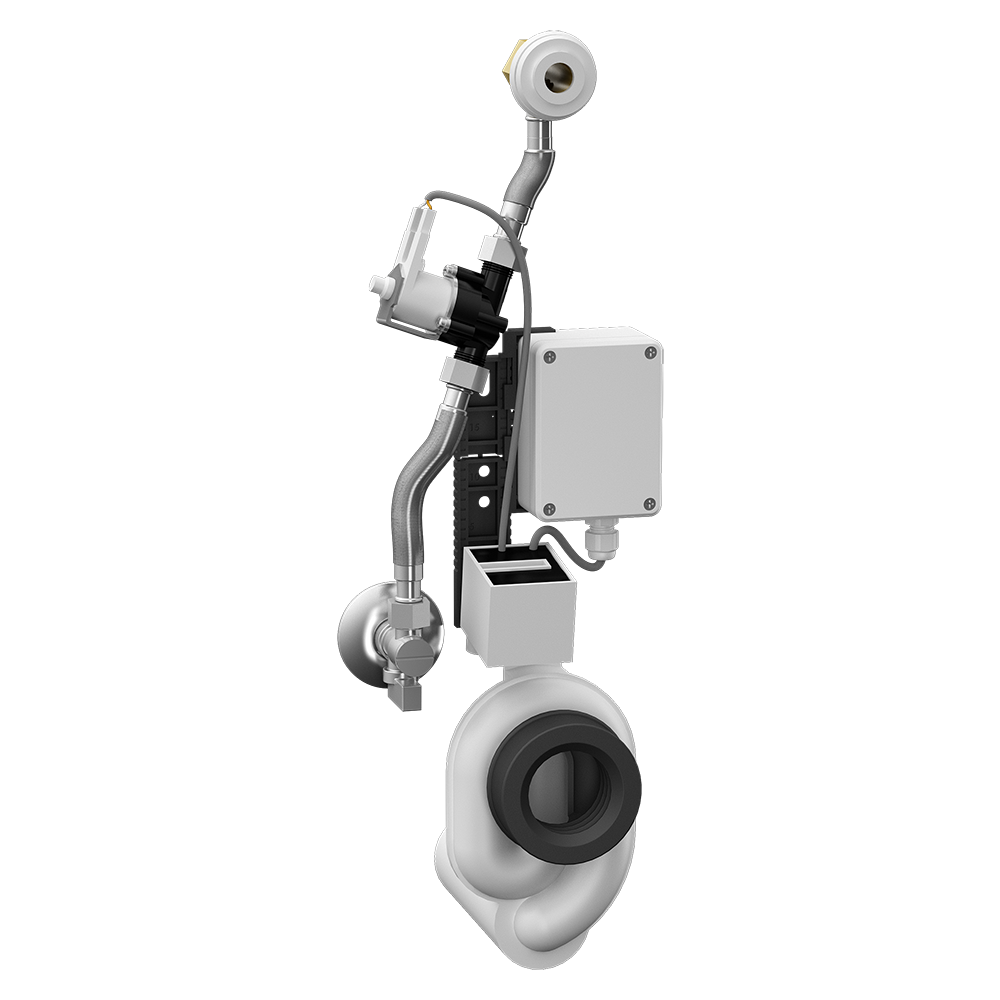

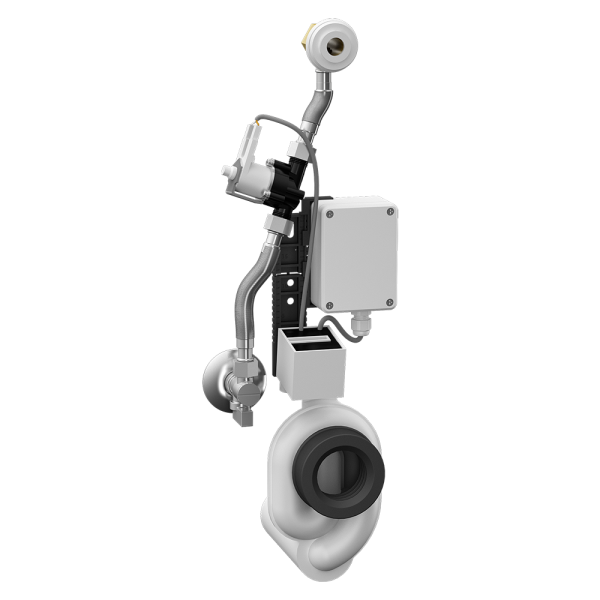

SLP 71RB
Radar flushing unit for urinal Villeroy Boch Subway 751300, 6 V
Characteristics
- radar flushing unit for urinal Subway No. 751300, 751301, 751305 (Villeroy & Boch)
- includes Bluetooth control (paid Sanela control app available for download)
- economy flushing by 1 liter of water
- during installation is necessary to blind additional inlet holes by silicone plugs (see the mounting instructions)
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- monitoring of battery capacity
- possibility to regulate a water flow by the ball valve
- radar flushing unit recharges a water to the siphon after each flushing
- Order number: 11717
I am interested in more information:
Supply specification

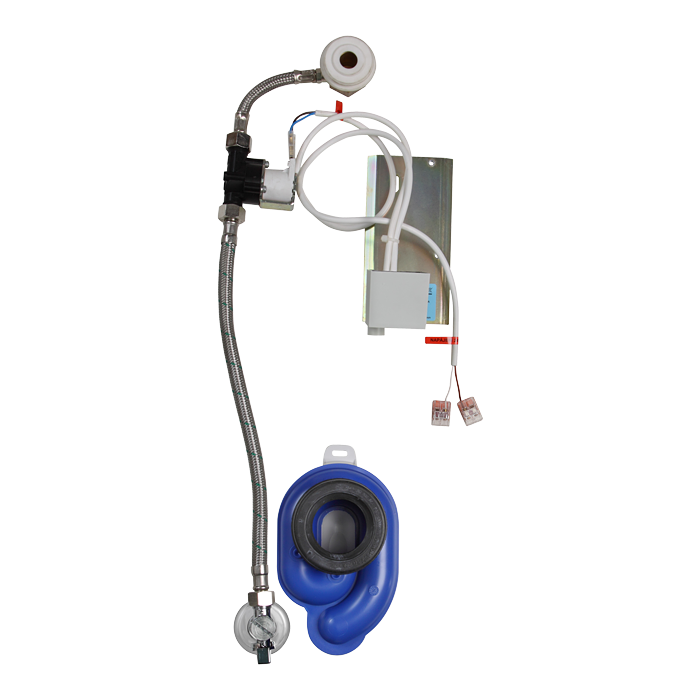

SLP 71RB - Supply No. 11717 - radar flushing unit including Bluetooth module on the mounting rail, electromagnetic valve, silicone plug (1 pc.), connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, paper drill template, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh with battery case
Technical information
Power supply: | battery operated |
Location: | behind the urinal |
Flushing unit: | without urinal |
Control: | radar |
Operating voltage: | 6 V |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 18 l/min (inf. data) |
Water inlet: | male thread G 1/2“ |
Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Mounting instructions (3.3 MB)
- Catalogue list (382.24 kB)
- Mounting diagram (402.5 kB)
- 2D Drawing (110.44 kB)
