SLP 49RZ

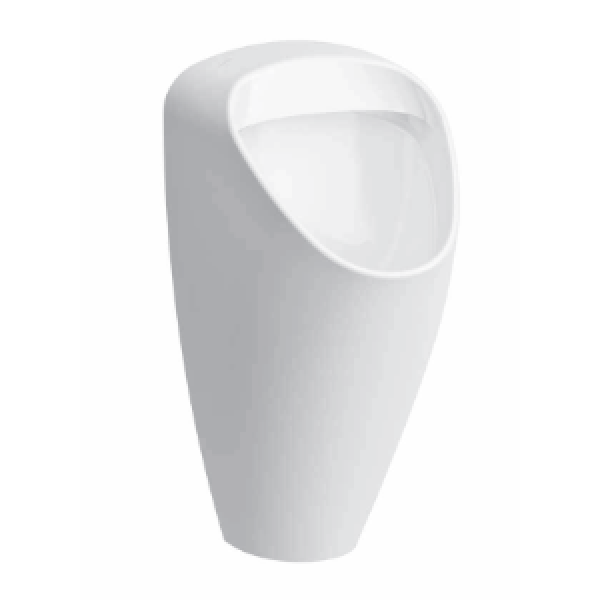

Urinal Caprino Plus with a radar flushing unit and integrated power supply, 230 V AC

Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01495
Code SLP 49RZ

Supply specification

SLP 49RZ - Supply No. 01495 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
  • Print

Accessories

Plastic urinal screen orange colour - mango…
Plastic urinal screen red colour - kiwi and…
Plastic urinal screen transparent colour -…
Plastic urinal screen blue colour - cotton…
Remote control for an adjustment of…
Mounting frame to the plasterboard for a…
