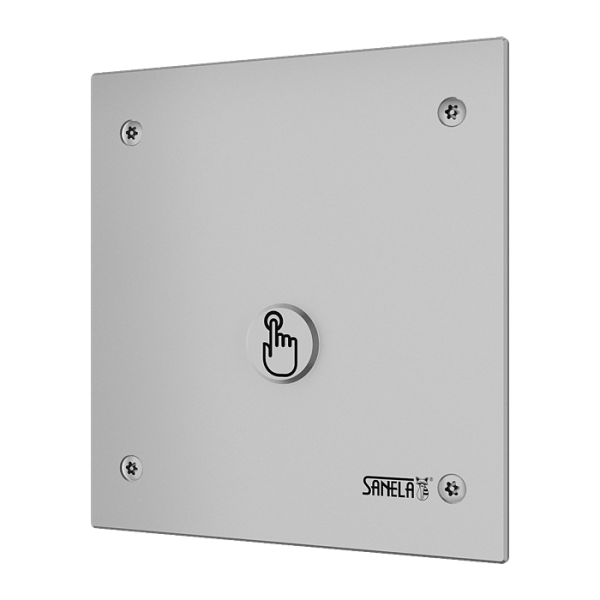

SLW 01PA

Toilet piezo flushing unit for pressured water with vandal-proof cover, 24 V DC

Characteristics

  • vandal-proof
  • suitable for prison
  • special vandal-proof stainless steel cover, thickness 3 mm, safety screws
  • toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
  • water flows after soft push of the piezo button
  • adjustable flushing time 0,5 - 15,5 s, standard 8 s
  • automatic hygiene flush after each 8 use of toilet and after 24 hours non-use
  • electromagnetic valve with a possibility to regulate rate of flow, possibility to flush a toilet by turn of coil of the electromagnetic valve (f.e. in the case of electricity blackout)
  • parameters adjustment by remote control SLD 04
  • Order number: 14016
I am interested in more information:

Supply specification

SLW 01PA - Supply No. 14016 - stainless steel cover with piezo electronics, stainless steel mounting box with brass screw coupling and electromagnetic valve, inlet fitting with a rubber sealing, torx screws (4 pcs.)

Technical information

Flushing type: for a pressured water
Material: stainless steel
Power supply: 24V DC
Control: piezo
Stainless steel cover dimension: 160 x 170 x 3 mm
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,15 - 0,6 MPa
Rate of flow: 70 l/min. by the pressure 0,15 MPa (inf. data)
Water inlet: Ø min. 32 mm (PN 16) male thread G 1″
Water outlet: male thread G 1″
