SLW 04PA

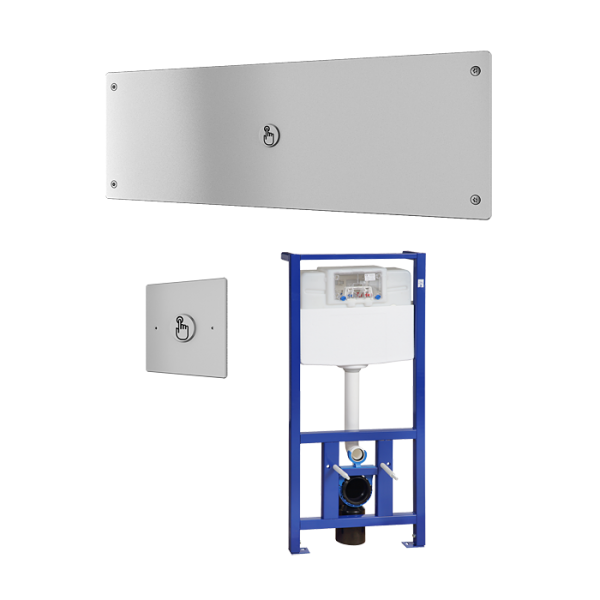

Piezo vandal-proof toilet flushing unit with distant control, including the frame SLR 21, 24 V DC
Characteristics
- with second piezo button for remote flush for disabled people
- vandal-proof
- suitable for prison
- special vandal-proof stainless steel cover, thickness 3 mm, safety screws
- water flows after soft push of the piezo button
- adjustable flushing time 0,5 - 15,5 s, standard 8 s
- automatic hygiene flush after each 8 use of toilet and after 24 hours non-use
- parameter adjustment using by the remote control SLD 04
- including the mounting frame SLR 21
- Order number: 14046
I am interested in more information:
Supply specification
SLW 04PA - Supply No. 14046 - stainless steel cover with piezo electronics, stainless steel holder of electromagnet, electromagnet, torx screws (4 pcs.), mounting frame with tank SLR 21, stainless steel cover with piezo electronics of remote flushing, plastic mounting box, torx screws (2 pcs.), connecting cable (2500 mm), connectors
Technical information
| Flushing type: | with remote flush |
| Flushing type: | from tank in mounting frame |
| Material: | stainless steel |
| Power supply: | 24V DC |
| Control: | piezo |
| Stainless steel cover dimension: | 500 x 170 x 3 mm |
| Stainless steel cover dimension for remote flush: | 85 x 90 x 3 mm |
| Frame dimension: | 510 x 1120 - 1290 x 155 x 235 mm |
| Operating voltage: | 24 V DC |
| Recommended flow pressure: | 0,15 - 0,6 MPa |
| Water inlet: | male thread G 1/2“ |
| Water outlet: | inlet fitting with a rubber sealing |
Downloads
- Mounting instructions (8.52 MB)
- Catalogue list (279.3 kB)
- 2D Drawing (259.91 kB)
