SLW 02PA

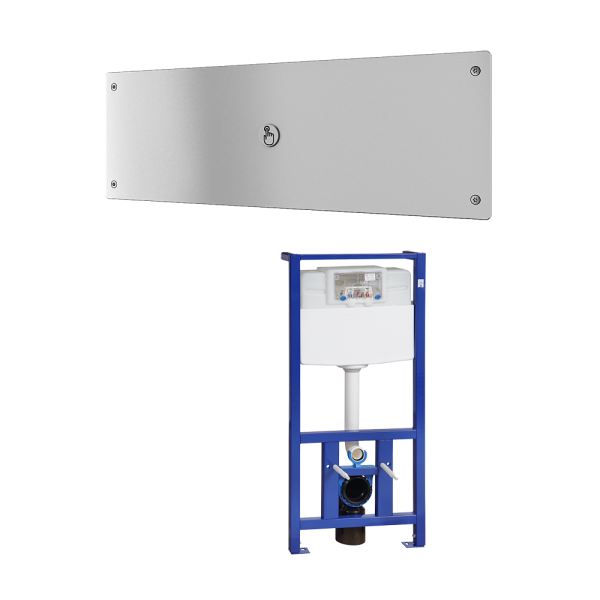

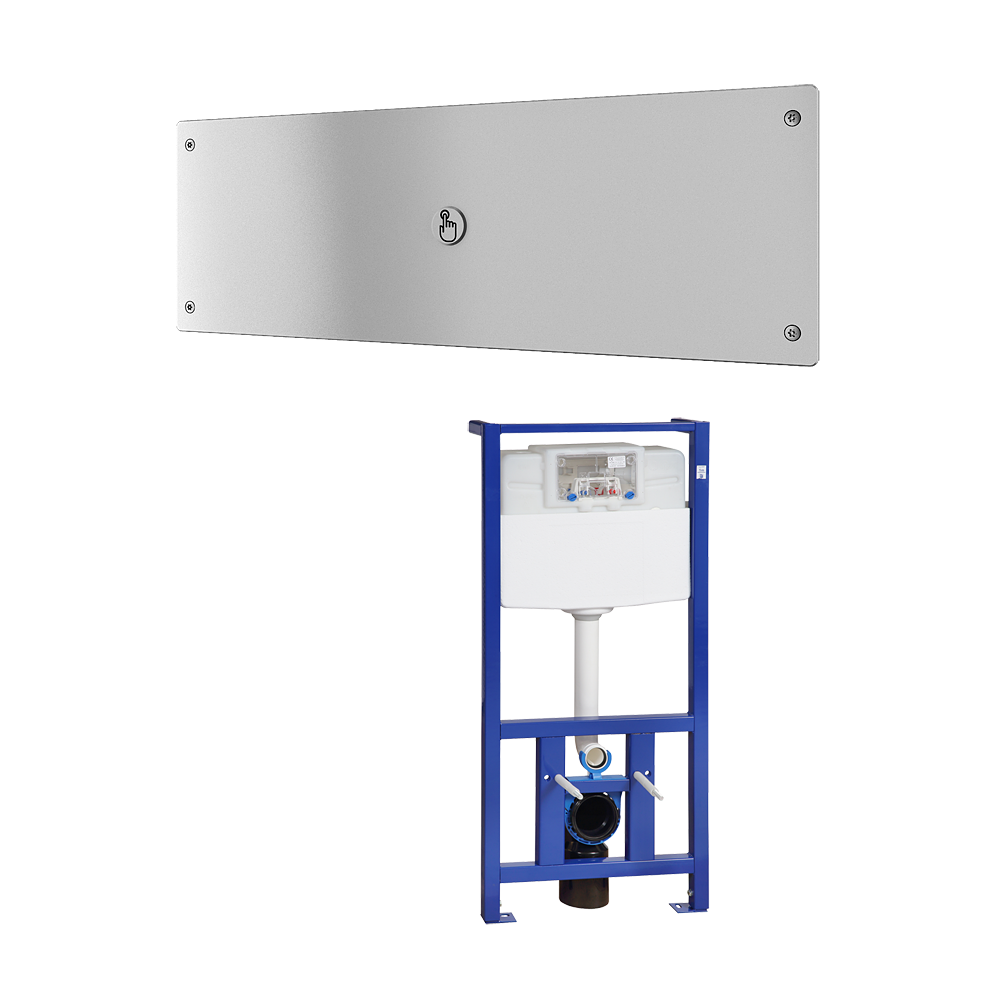

Piezo toilet flushing unit with vandal-proof cover, including the frame SLR 21, 24 V DC

Characteristics

  • vandal-proof
  • suitable for prison
  • special vandal-proof stainless steel cover, thickness 3 mm, safety screws
  • water flows after soft push of the piezo button
  • adjustable flushing time 0,5 - 15,5 s, standard 8 s
  • automatic hygiene flush after each eighth flush or 24 hours non using of toilet
  • parameter adjustment using by the remote control SLD 04
  • including the mounting frame SLR 21
  • Order number: 14026

Supply specification

SLW 02PA - Supply No. 14026 - stainless steel cover with piezo electronics, stainless steel holder of electromagnet, electromagnet, torx screws (4 pcs.), mounting frame with tank SLR 21

Technical information

flushing type: from tank in mounting frame
material: stainless steel
power supply: 24V DC
control: piezo
Stainless steel cover dimension: 500 x 170 x 3 mm
Frame dimension: 510 x 1120 - 1290 x 155 - 235 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,15 - 0,6 MPa
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
