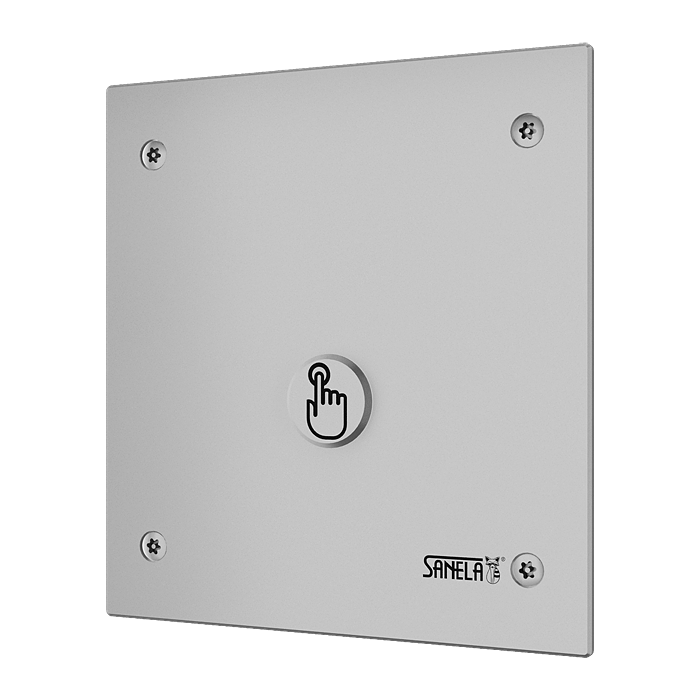

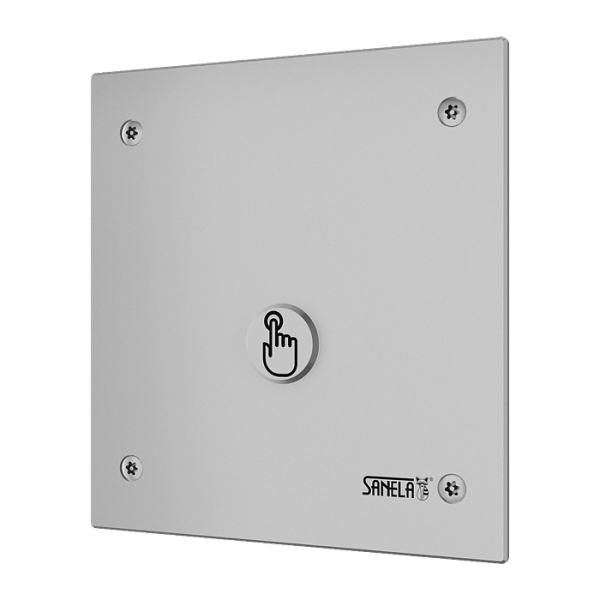

SLW 01PBA
Toilet piezo flushing unit for pressured water with vandal-proof cover, 6 V
New product
Characteristics
- vandal-proof
- suitable for prison
- special vandal-proof stainless steel cover, thickness 3 mm, safety screws
- toilet flushing unit for a pressure water from water distribution, isn´t possible to use it for toilet with tank
- water flows after soft push of the piezo button
- adjustable flushing time 0,5 - 15,5 s, standard 8 s
- automatic hygiene flush after each 8 use of toilet and after 24 hours non-use
- electromagnetic valve with a possibility to regulate rate of flow, possibility to flush a toilet by turn of coil of the electromagnetic valve (f.e. in the case of electricity blackout)
- monitoring of battery capacity
- parameters adjustment by remote control SLD 04
- Order number: 14018
- EAN: 8591385140181
I am interested in more information:
Supply specification
SLW 01PBA - Supply No. 14018 - stainless steel cover with piezo electronics, stainless steel mounting box with brass screw coupling and electromagnetic valve, inlet fitting with a rubber sealing, torx screws (4 pcs.), 4 pcs. alkaline batteries AA, 1,5 V, 2700 mAh
Technical information
| Stainless steel cover dimension: | 160 x 170 x 3 mm |
| Mounting box dimension: | 145 x 155 x 100 mm |
| Operating voltage: | 6 V |
| Power input: | 3 W |
| Recommended flow pressure: | 0,15 - 0,6 MPa |
| Rate of flow: | 70 l/min. by the pressure
0,15 MPa (inf. data) |
| Water inlet: | Ø min. 32 mm (PN 16)
male thread G 1″ |
| Water outlet: | male thread G 1″ |
Downloads
- Mounting instructions (3.11 MB)
- 2D Drawing (324.34 kB)
