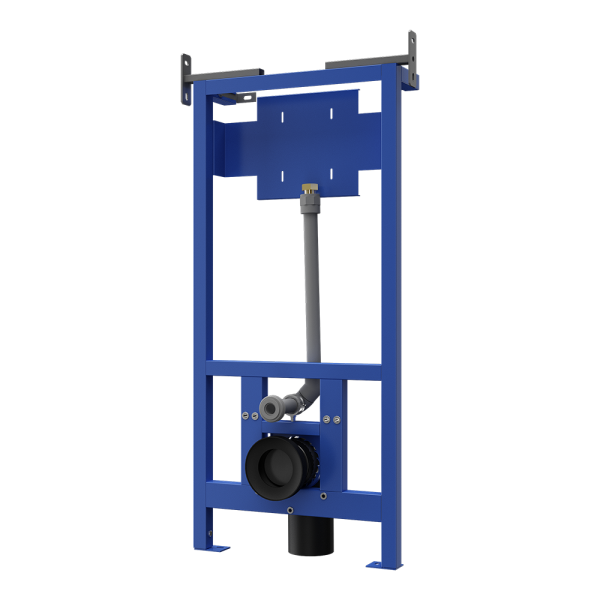

SLR 03A
WC Mounting frame for drywall profiles installation
New product
Characteristics
- WC mounting frame, for installation in plasterboard partitions
- anchoring to the ground and to the back wall
- is designed for mounting of wall hung toilet and infra-red flushing units, which is placed above the toilet (SLW 01NK, SLW 01P, SLW 01PA, SLW 03PA, SLP 05)
- five-point system for fixing of stainless steel toilets
- possibility to use it at fixed distance 180 or 230 mm
- metal frame construction with surface finishing - blue powder coated
- adjustable height 1120 - 1290 mm
- adjustable depth 155 - 235 mm
- adjustable width 570-700 mm
- Order number: 08032
- EAN: 8591385080326
I am interested in more information:
Supply specification
SLR 03A - Supply No. 08032 - mounting frame, plate for mounting the installation box, set for connection of the installation box and for water connection Ø 50 mm, screws M10 for fixing the toilet, waste holder with elbow Ø 110 mm, mounting material
Downloads
- Mounting instructions (6.49 MB)
- Catalogue list (144.57 kB)
