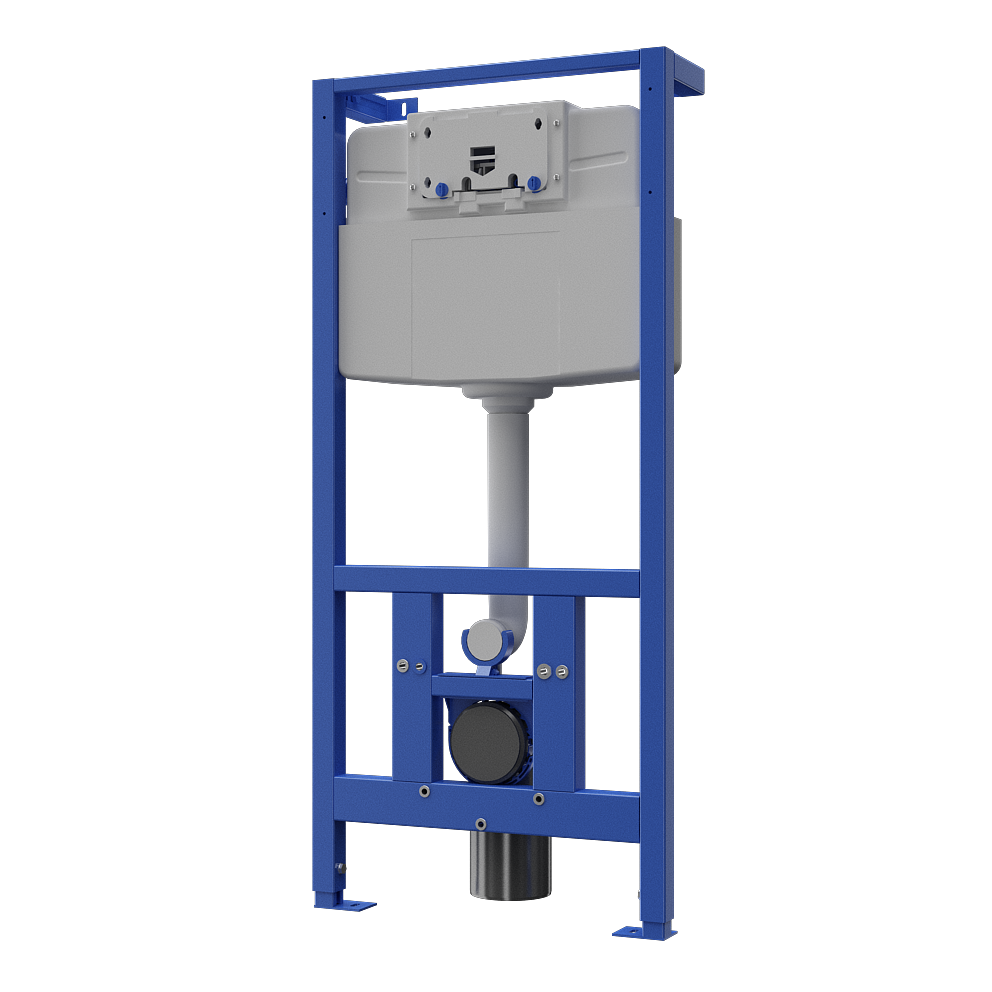

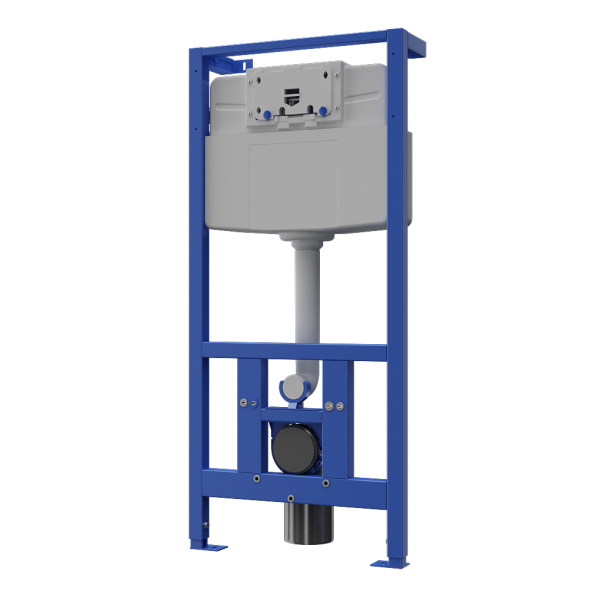

SLR 21
Mounting frame with concealed tank for wall hung toilets, for installation to the plasterboard and brick wall
Characteristics
- mounting frame with tank destined for plasterboard constructions, for mounting to the floor and to the back wall
- is destined for wall hung toilets and floor standing toilets (mechanical, infra-red and electronic touch)
- five-point system for fixing of stainless steel toilets
- metal frame construction with surface finishing - blue powder coated
- adjustable height 1120 - 1290 mm
- adjustable depth 155 - 235 mm
- mounting screws M10, waste pipe holder with connecting set Ø 50 mm and waste pipe holder with the elbow pipe Ø 110 mm
- Order number: 08210
I am interested in more information:
Supply specification
SLR 21 - Supply No. 08210 - mounting frame for plasterboard constructions, for mounting to the floor and to the back wall, mounting set, waste pipe holder with the elbow, for wall hung toilets and floor standing toilets
Technical information
| Dimensions: | 500 x 1120 - 1290 x 155 - 235 mm |
| Height: | 1120 - 1290 mm |
Downloads
- Mounting instructions (5.74 MB)
- Catalogue list (207.2 kB)
- 2D Drawing (634.32 kB)
