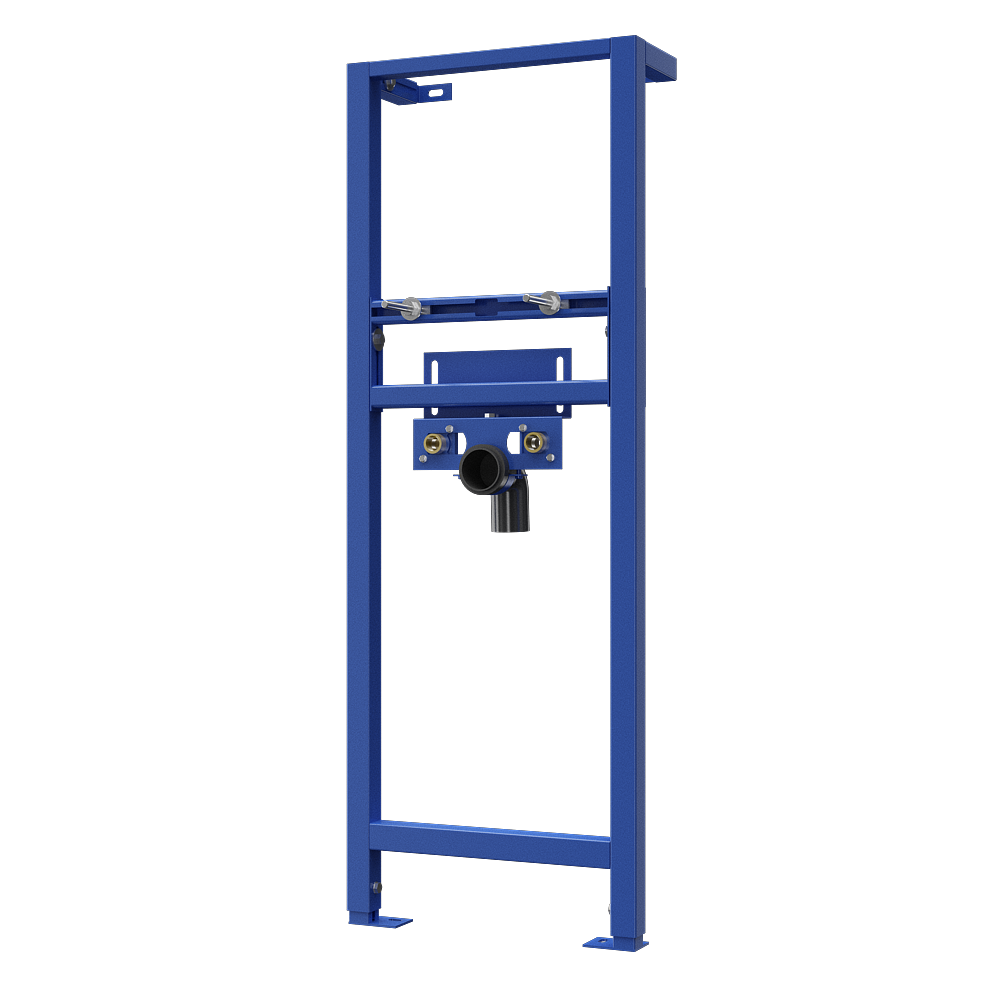

SLR 23
Mounting frame for washbasin
Characteristics
- is destined for plasterboard constructions, for mounting to the floor and to the back wall
- is destined for mounting of ceramic washbasins
- metal frame construction with surface finishing - blue powder coated
- adjustable height 1120 - 1290 mm
- adjustable depth 155 - 235 mm
- mounting screws M10, waste pipe holder with the elbow pipe Ø 50 mm and 2 x watter inlet G 1/2“
- Order number: 08230
I am interested in more information:
Supply specification
SLR 23 - Supply No. 08230 - mounting frame for plasterboard constructions or for mounting to the floor and to the back wall, mounting frame is destined for mounting of ceramic washbasin, mounting screws M10
Downloads
- Mounting instructions (7.11 MB)
- Catalogue list (179.05 kB)
- 2D Drawing (693.85 kB)
