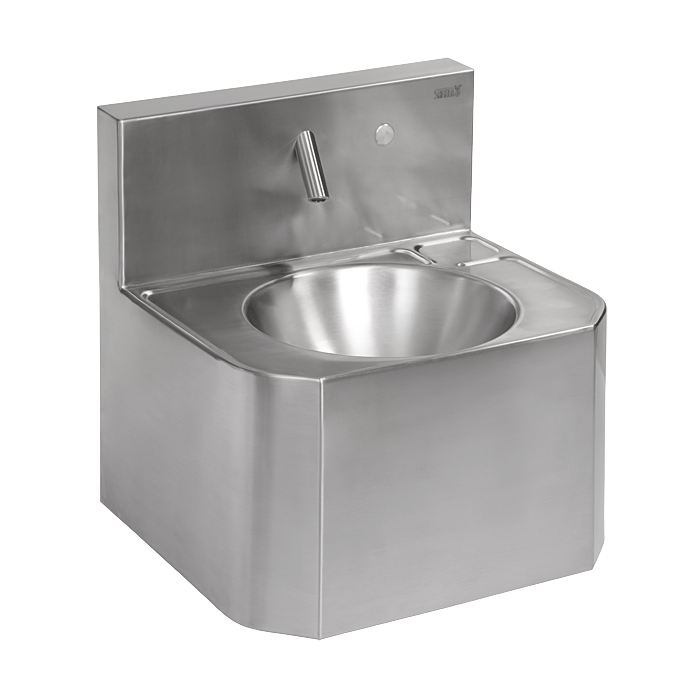

SLUN 72PT
Vandal-proof stainless steel piezo wall-mounted washbasin, for cold and hot water, with thermostatic valve, 24 V DC
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- vandal-proof
- suitable for prison
- stainless steel wall hung washbasin with piezo electronics and special anti-suicide spout
- SLUN 72PT - is destined for cold and hot water, temperature is regulated by thermostatic valve
- rear assembling through the service hatch
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
- water could be stopped by follow-up soft push of piezo button
- parameter adjustment using by the remote control SLD 04
- material AISI - 304
- brushed finish
- Order number: 73727
I am interested in more information:
Supply specification
SLUN 72PT - Supply No. 73727 - stainless steel washbasin with piezo electronics and spout, electromagnetic valve (1 pc.), thermostatic valve (1 pc.), angle valve with filter and check valve (2 pcs.), connecting hoses, siphon, mounting set
Technical information
| Temperature regulation: | with thermostat |
| Power supply: | 24V DC |
| Installation: | wall hung |
| Category: | washbasin |
| Control: | piezo |
| Operating voltage: | 24 V DC |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (1.63 MB)
- Catalogue list (241.82 kB)
- 2D Drawing (244.03 kB)
