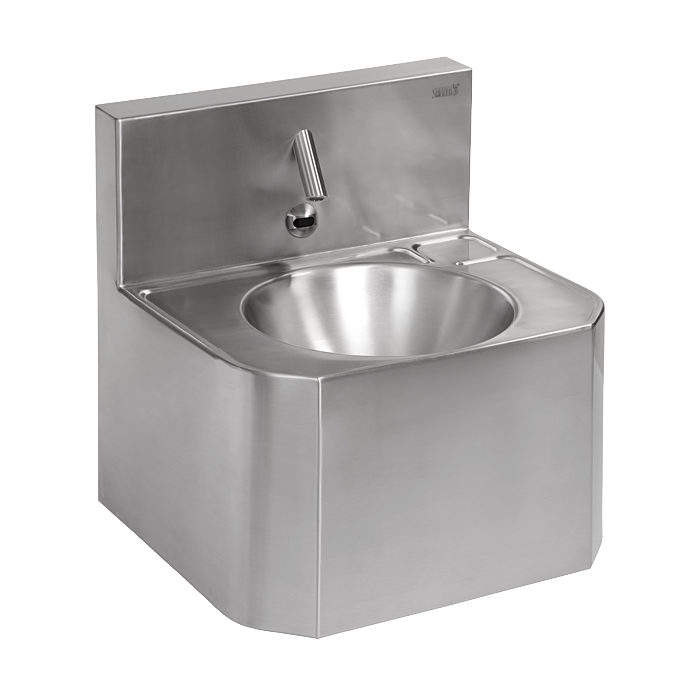

SLUN 71EB
Vandal-proof stainless steel automatic wall-mounted washbasin, for cold or premixed water, 6 V
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- vandal-proof
- suitable for prison
- stainless steel wall hung washbasin with infra-red electronics and special anti-suicide spout
- SLUN 71E - is destined for cold a premixed water
- rear assembling through the service hatch
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- monitoring of battery capacity
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- material AISI - 304
- brushed finish
- Order number: 93712
I am interested in more information:
Supply specification
SLUN 71EB - Supply No. 93712 - stainless steel washbasin with electronics and spout, electromagnetic valve (1 pc.), connecting hoses, angle valve with filter (1 pc.), siphon, mounting set, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
| Temperature regulation: | for cold or premixed water |
| Power supply: | battery operated |
| Installation: | wall hung |
| Category: | washbasin |
| Control: | infra-red |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day) |
| Active range: | 0,23 - 0,31 m |
| Recommended flow pressure: | 0,1 - 0,6 МPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (2.87 MB)
- Catalogue list (343 kB)
- 2D Drawing (218.99 kB)
