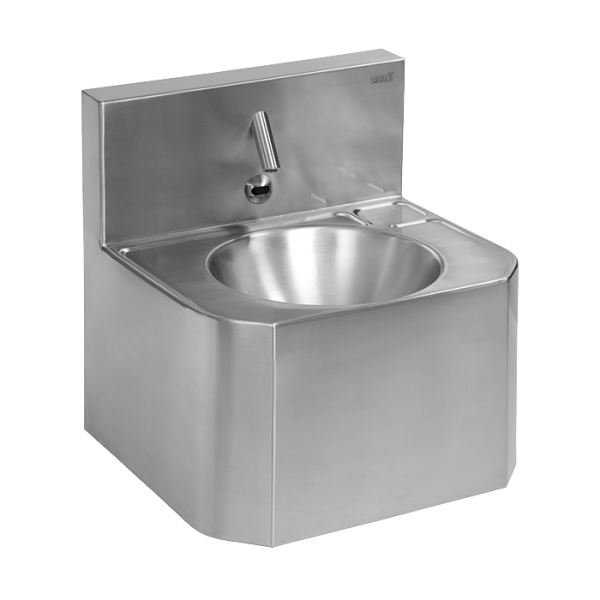

SLUN 72E

Vandal-proof stainless steel automatic wall-mounted washbasin, for cold and hot water, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • suitable for prison
  • stainless steel wall hung washbasin with infra-red electronics and special anti-suicide spout
  • SLUN 72E - is destined for cold and hot water, temperature is regulated by angle valves
  • rear assembling through the service hatch
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • material AISI - 304
  • brushed finish
  • Order number: 93721

Supply specification

SLUN 72E - Supply No. 93721 - stainless steel washbasin with electronics and spout, electromagnetic valve (1 pc.), Y-piece, connecting hoses, angle valve with filter and check valve (2 pcs.), siphon, mounting set

Technical information

installation: wall hung
category: washbasin
control: infra-red
Operating voltage: 24 V DC
Active range: 0,23 - 0,31 m
Recommended flow pressure: 0,1 - 0,6 МPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Economical aerator 3,8 l/min for SLU…
Economical aerator1,9 l/min for SLU…
Remote control for an adjustment of…
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply for 1 washbasin…
