SLUN 72ET

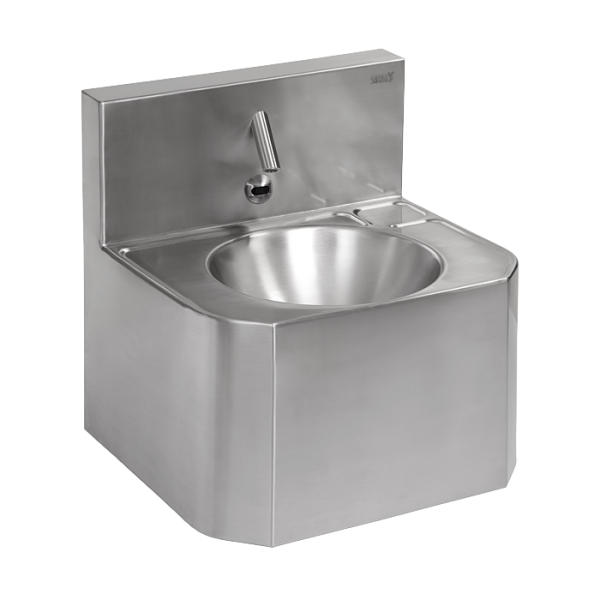

Vandal-proof stainless steel automatic wall-mounted washbasin, for cold and hot water, with thermostatic valve, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • suitable for prison
  • stainless steel wall hung washbasin with infra-red electronics and special anti-suicide spout
  • SLUN 72ET - is destined for cold and hot water, temperature is regulated by thermostatic valve
  • rear assembling through the service hatch
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 – 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • material AISI - 304
  • brushed finish
  • Order number: 93723
I am interested in more information:

Supply specification

SLUN 72ET - Supply No. 93723 - stainless steel washbasin with electronics and spout, electromagnetic valve (1 pc.), thermostatic valve (1 pc.), connecting hoses, angle valve with filter and check valve (2 pcs.), siphon, mounting set

Technical information

installation: wall hung
category: washbasin
control: infra-red
Operating voltage: 24 V DC
Active range: 0,23 - 0,31 m
Recommended flow pressure: 0,1 - 0,6 МPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“

Downloads

Accessories

Economical aerator 3,8 l/min for SLU…
Economical aerator 1,9 l/min for SLU…
Remote control for an adjustment of…
External power supply 230 V AC/24 V DC
External power supply 230 V AC/24 V DC
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply 24 V DC for…
External power supply for 1 washbasin…
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
