SLUN 71PB

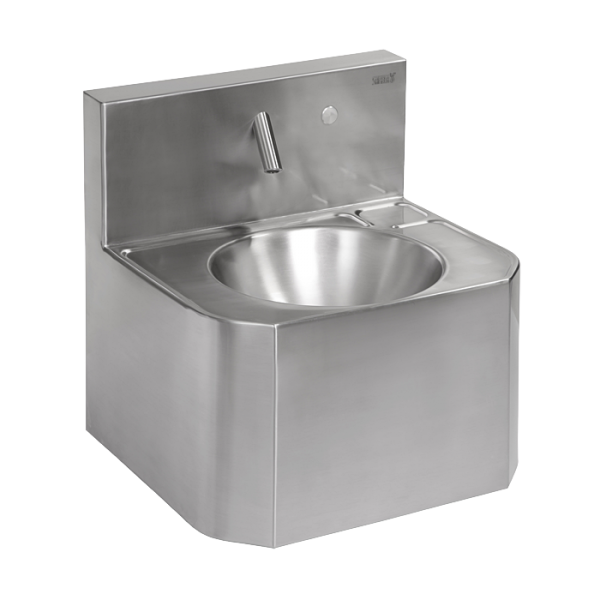

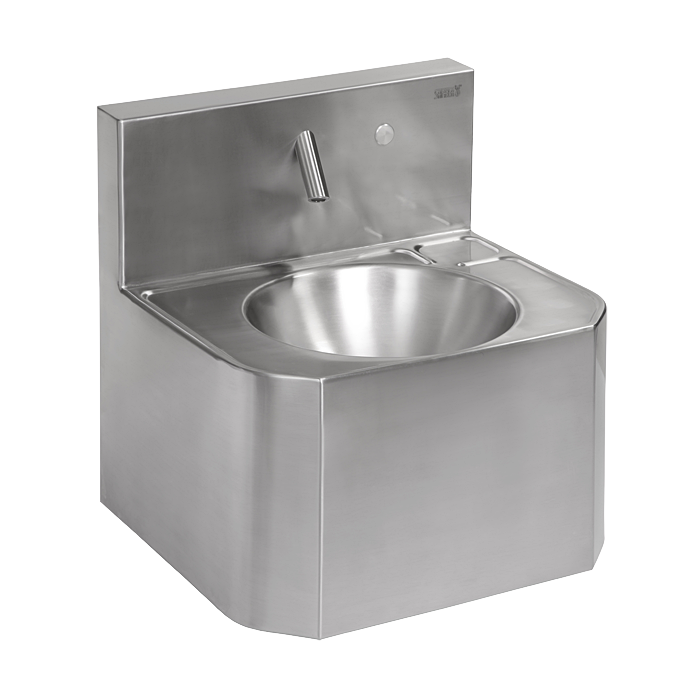

Vandal-proof stainless steel piezo wall-mounted washbasin, for cold or premixed water, 6 V
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- vandal-proof
- suitable for prison
- stainless steel wall hung washbasin with piezo electronics and special anti-suicide spout
- SLUN 71P - is destined for cold a premixed water
- rear assembling through the service hatch
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
- water could be stopped by follow-up soft push of piezo button
- monitoring of battery capacity
- parameter adjustment using by the remote control SLD 04
- material AISI - 304
- brushed finish
- Order number: 73716
I am interested in more information:
Supply specification
SLUN 71PB - Supply No. 73716 - stainless steel washbasin with piezo electronics and spout, electromagnetic valve (1 pc.), angle valve with filter (1 pc.), connecting hoses, siphon, mounting set, 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh
Technical information
| Temperature regulation: | for cold or premixed water |
| Power supply: | battery operated |
| Installation: | wall hung |
| Category: | washbasin |
| Control: | piezo |
| Operating voltage: | 6 V |
| Battery life: | 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day) |
| Recommended flow pressure: | 0,1 - 0,6 MPa |
| Rate of flow: | 6 l/min. (inf. data) |
| Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (2.63 MB)
- Catalogue list (241.82 kB)
- 2D Drawing (244.03 kB)
