SLUN 71P

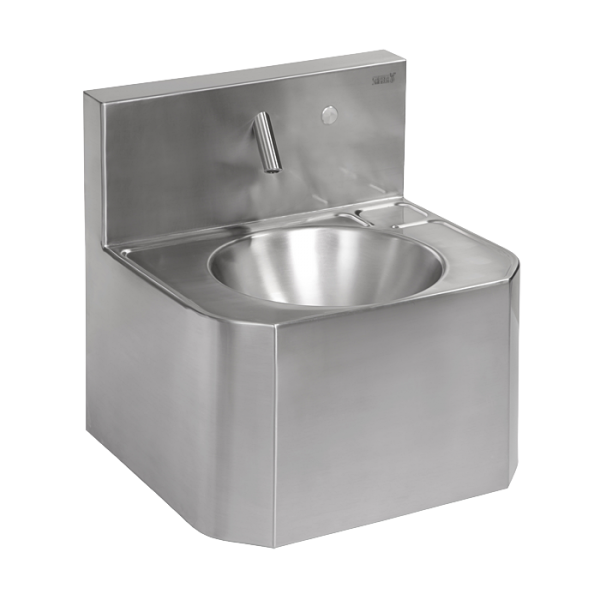

Vandal-proof stainless steel piezo wall-mounted washbasin, for cold or premixed water, 24 V DC

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • suitable for prison
  • stainless steel wall hung washbasin with piezo electronics and special anti-suicide spout
  • SLUN 71P - is destined for cold a premixed water
  • rear assembling through the service hatch
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 2 - 62 s), standard 10 s
  • water could be stopped by follow-up soft push of piezo button
  • parameter adjustment using by the remote control SLD 04
  • material AISI - 304
  • brushed finish
  • Order number: 93717

Supply specification

SLUN 71P - Supply No. 93717 - stainless steel washbasin with piezo electronics and spout, electromagnetic valve (1 pc.), angle valve with filter (1 pc.), connecting hoses, siphon, mounting set

Technical information

installation: wall hung
category: washbasin
control: piezo
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
