SLS 01NP
Piezo shower control for cold or premixed water, 24 V DC
Characteristics
- hygienic flush
- vandal-proof
- is destined for cold or premixed water
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
- water could be stopped by follow-up soft push of piezo button
- parameter adjustment using by the remote control SLD 04
- Order number: 22016
I am interested in more information:
Supply specification

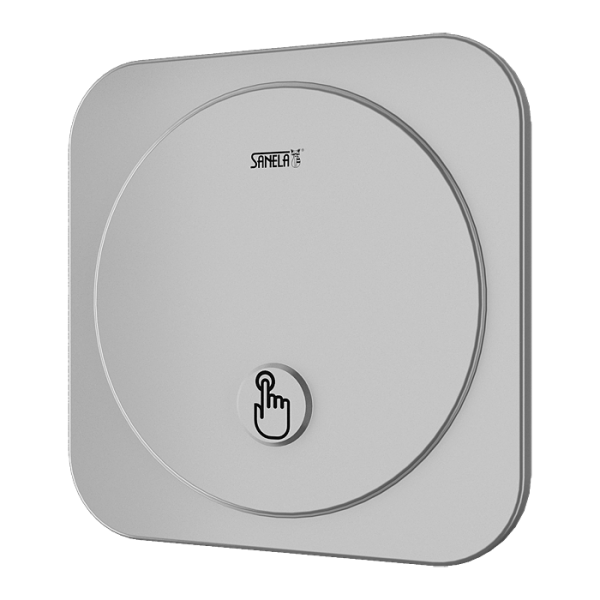

SLS 01NP - Supply No. 22016 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve
Technical information
Material: | stainless steel |
Temperature regulation: | for cold or premixed water |
Power supply: | 24V DC |
Control: | piezo |
Stainless steel cover dimension: | 170 x 170 x 10 mm |
Mounting box dimension: | 140 x 140 x 75 mm |
Operating voltage: | 24 V DC |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 12 l/min. (inf. data) |
Water inlet: | male thread G 3/4“ |
Water outlet: | male thread G 3/4“ |
Downloads
- Mounting instructions (2.33 MB)
- Catalogue list (178.56 kB)
- 2D Drawing (123.82 kB)
