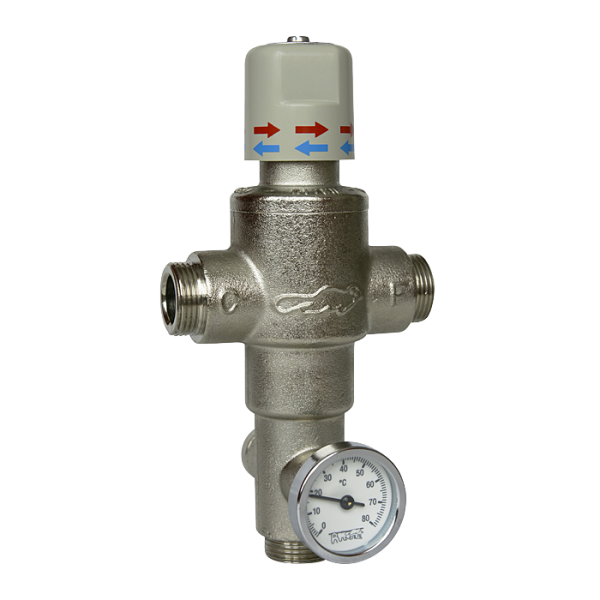

SLT 10
Thermostatic mixing valve 6/4
Characteristics
- rate of flow 155 l/min by the pressure 0,1 MPa
- temperature of water is adjusted within the range 20 - 65 °C
- for the right function the pressure of water have to be the same on the both water inlets
- there have to be installed non-returned valves in the front of water inlets
- constant temperature of water is possible adjust by turn of control
- pernamently regulates the amount of hot and cold water and every change of temperature is corrected almost instantly by a thermostatic element
- hot water is automatically closed until 1 s at the cold water failure
- Order number: 09100
I am interested in more information:
Supply specification
Thermostatic mixing valve 6/4" (155l/min)
Downloads
- Mounting instructions (2.07 MB)
- Catalogue list (337.79 kB)
- 2D Drawing (449.5 kB)
