SLT 09

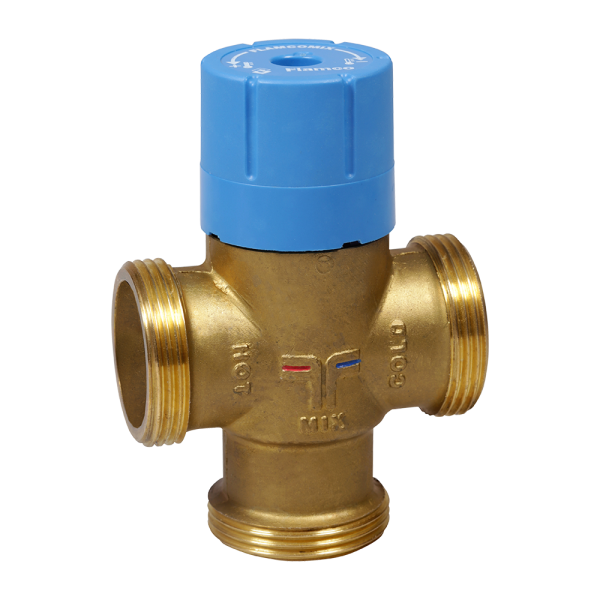

Thermostatic mixing valve 5/4" (82l/min.)

Characteristics

  • rate of flow by the pressure 0,1 MPa mentioned for each product
  • temperature of water is adjusted within the range 20 - 65 °C
  • for the right function the pressure of water have to be the same on the both water inlets
  • there have to be installed non-returned valves in the front of water inlets
  • constant temperature of water is possible adjust by turn of control
  • pernamently regulates the amount of hot and cold water and every change of temperature is corrected almost instantly by a thermostatic element
  • hot water is automatically closed until 1 s at the cold water failure
Order number 09090
Code SLT 09
