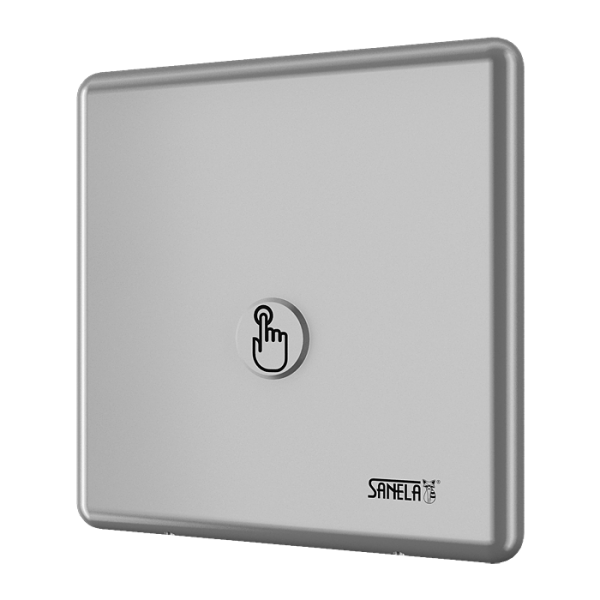

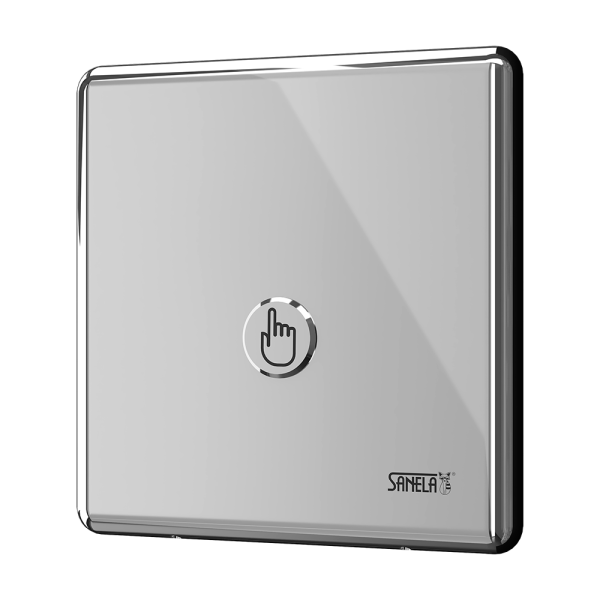

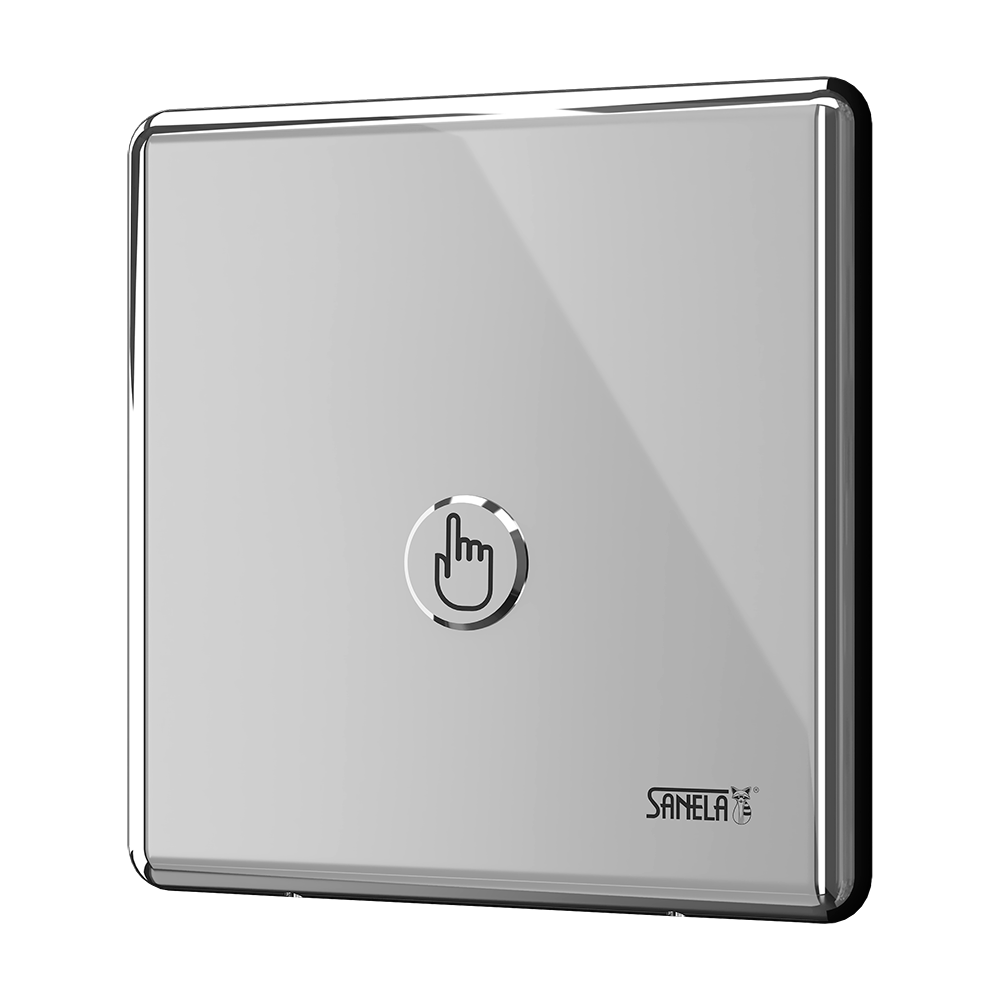

SLS 01P
Piezo shower control for cold or premixed water, 24 V DC
Characteristics
- hygienic flush
- vandal-proof
- is destined for cold or premixed water
- water flows after soft push of the piezo button
- water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
- water could be stopped by follow-up soft push of piezo button
- parameter adjustment using by the remote control SLD 04
| Order number | 12012 |
| Code | SLS 01P |
Supply specification
SLS 01P - Supply No. 12012 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve
Technical information
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
