SLS 01PA

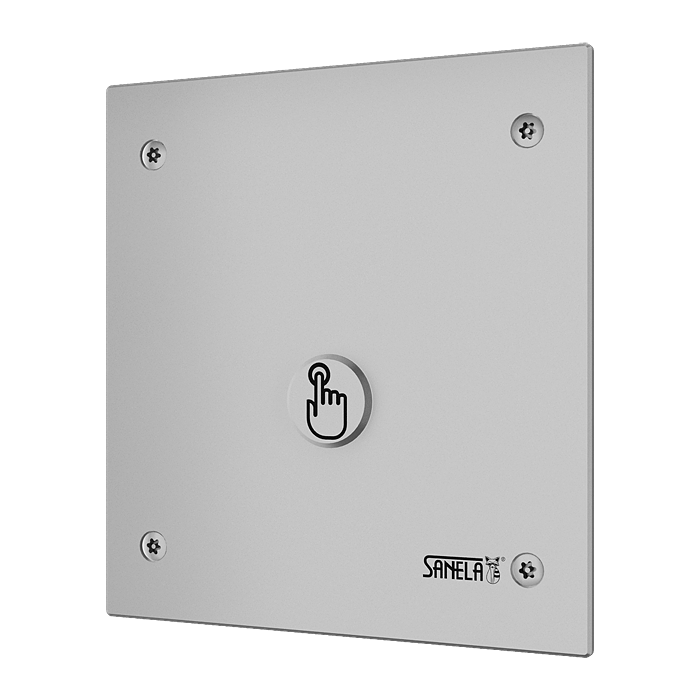

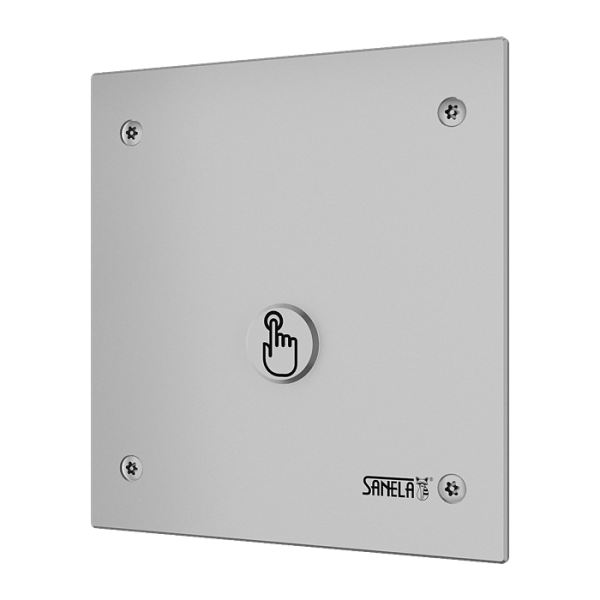

Piezo shower control for cold or premixed water, with vandal-proof cover, 24 V DC

Characteristics

  • hygienic flush
  • vandal-proof
  • suitable for a prison
  • special vandal-proof stainless steel cover, thickness 3 mm, safety screws
  • is destined for cold or premixed water
  • water flows after soft push of the piezo button
  • water stops flowing after adjustable flowing time (can be set in 10 s - 310 s), standard 120 s
  • water could be stopped by follow-up soft push of piezo button
  • parameter adjustment using by the remote control SLD 04
  • Order number: 12016

Supply specification

SLS 01PA - Supply No. 12016 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, 4x torx screw

Technical information

material: stainless steel
temperature regulation: for cold or premixed water
power supply: 24V DC
control: piezo
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
