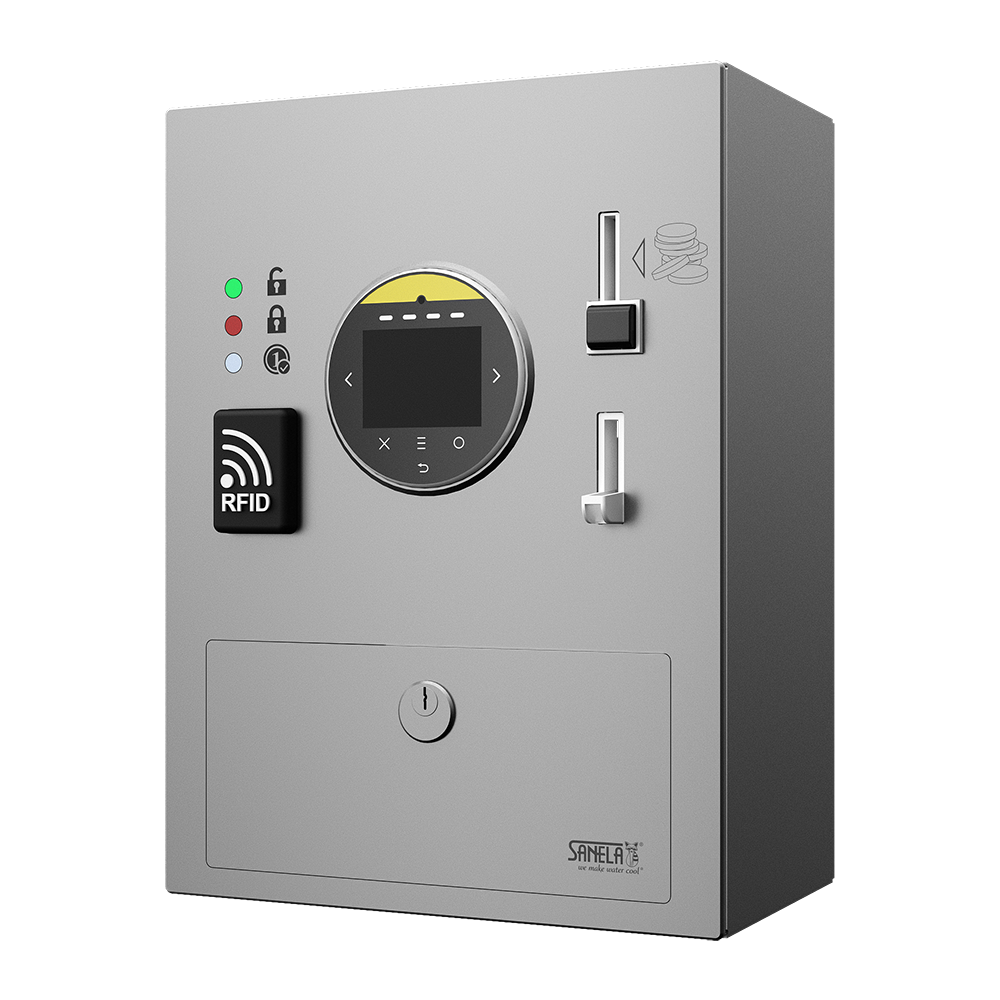

SLZA 43B
Automatic device for single-phase appliance, multiple payment methods, 24 V DC
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- vandal-proof
- automatic device for single -phase appliances, multiple payment methods, 1 - 4 devices
- a single-phase appliance selection is made on the display of the payment terminal
- payment with coins, tokens, RFID tokens, contactless payment card, Google Pay or Apple Pay
- the device adds up the coins but does not return
- after payment the device switches on the selected contactor of the sinngle-phase appliance (e.g. washing machine, hair dryer, TV) for the paid time
- automatic notification when the cash register is full as an option
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth)
- lockable
- for indoor use, temperature range +5 to +40 °C
- material stainless steel AISI 304 (1.4301)
- brushed finish
- Order number: 89430
- EAN: 8591385894305
I am interested in more information:
Supply specification
SLZA 43B - Supply No. 89430 - stainless steel payment device with electronics including Bluetooth module, coin box, coin holder, credit card reader, RFID token credit value reader, set of keys (2 pcs.), SW appliance
Technical information
| Dimensions: | 320 x 240 x 160 mm |
| Weight: | 7,85 kg |
| Thickness of material: | the front cove - 3 mm |
| box - 1,5 mm | |
| Operating voltage: | 24 V DC |
| Power input in sleep mode: | 8 W |
| Power input with output switched on (of 1 device): | 10,1 W |
| Power input with output switched on (of 2 devices): | 12,2 W |
| Accepted coins: |
0,5, 1 and 2 EUR |
| Adjustable time for switch: | 30 sec. - 16 hours |
| Adjustable minimum value for switch: | 1 € |
Downloads
- Mounting instructions (7.46 MB)
- Catalogue list (332.4 kB)
- Circuit diagram (3.28 MB)
