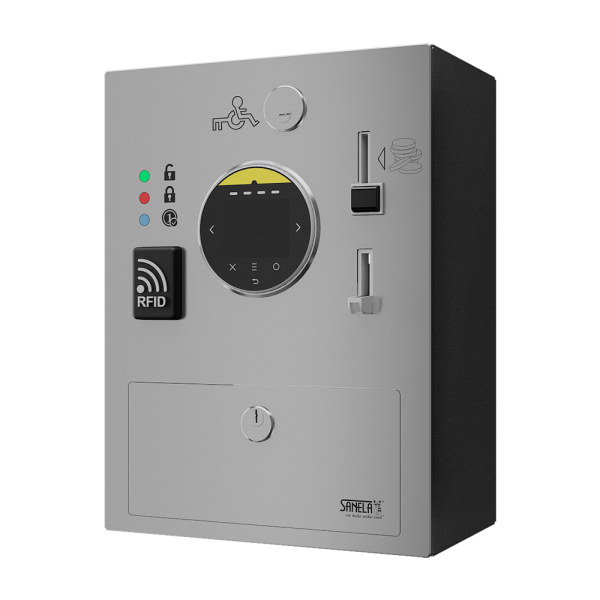

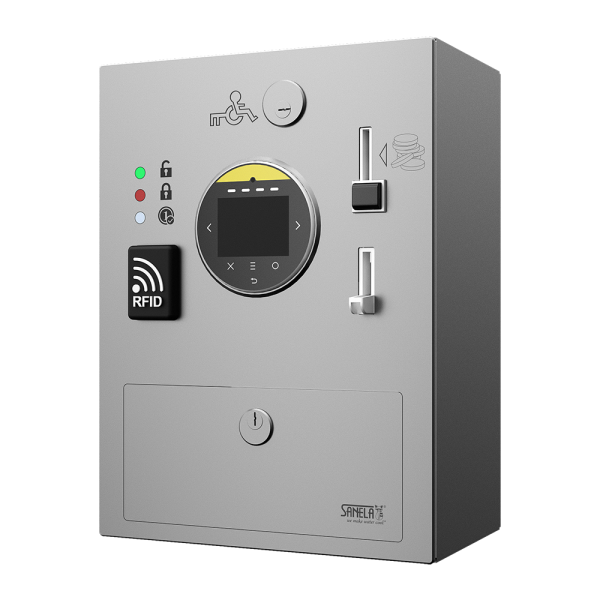

SLZA 43AV
Automatic device for door lock, multiple payment methods, with EURO KEY, 24 V DC
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- for disabled and persons with limited mobility
- vandal-proof
- automatic device for door lock, multiple payment methods 12 V DC (24 V DC), electromagnetic lock
- payment with coins, tokens, RFID tokens, contactless payment card, Google Pay or Apple Pay
- after inserting the credit the door lock opens for adjusted time
- the device adds up the coins but does not return
- automatic notification when the cash register is full as an option
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth)
- index V - with eurolock
- lockable
- for indoor use, temperature range +5 to +40 °C
- material AISI-304
- brushed finish
- Order number: 88439
- EAN: 8591385884399
I am interested in more information:
Supply specification
SLZA 43AV - Supply No. 88439 stainless steel payment device with electronics including Bluetooth module, coin box, coin holder, credit card reader, RFID token credit value reader, set of keys (2 pcs.), SW door opener, eurolock with eurokey
Technical information
| Dimensions: | 320 x 240 x 160 mm |
| Weight: | 8,95 kg |
| Thickness of material: | the front cover - 3 mm |
| box - 1,5 mm | |
| Operating voltage: | 24 V DC |
| Power input in sleep mode: | 8 W |
| Total power consumption of 1 door lock: | 16 W |
| Total power consumption of 2 door locks: | 24 W |
| Accepted coins: |
0,5, 1 and 2 EUR |
| Adjustable time for unlocking: | 1 - 310 sec. |
| Adjustable minimum value for unlocking: | 1 -19 €, standard 1 € |
Downloads
- Mounting instructions (5.98 MB)
- Catalogue list (721.28 kB)
- Circuit diagram (3.29 MB)
Accessories
Related Products
The display of the products on the website is for information only. The producer reserves the right to make technical changes or parameters. The producer makes every effort to keep the information published here as up-to-date as possible, but does not guarantee that all data is accurate and current at the time.
