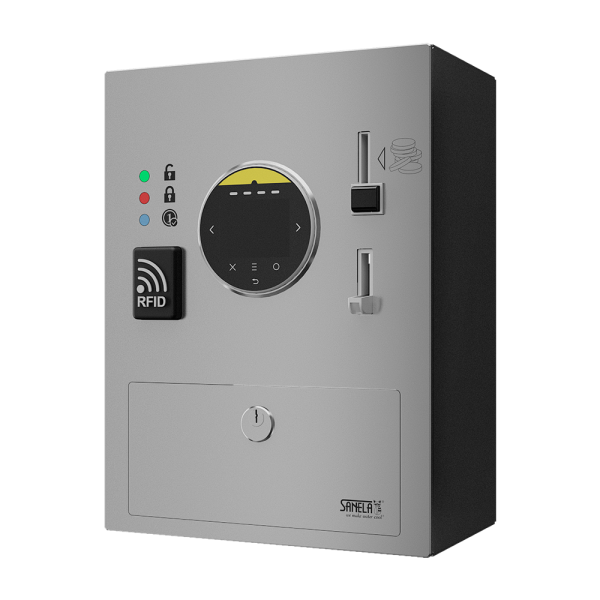

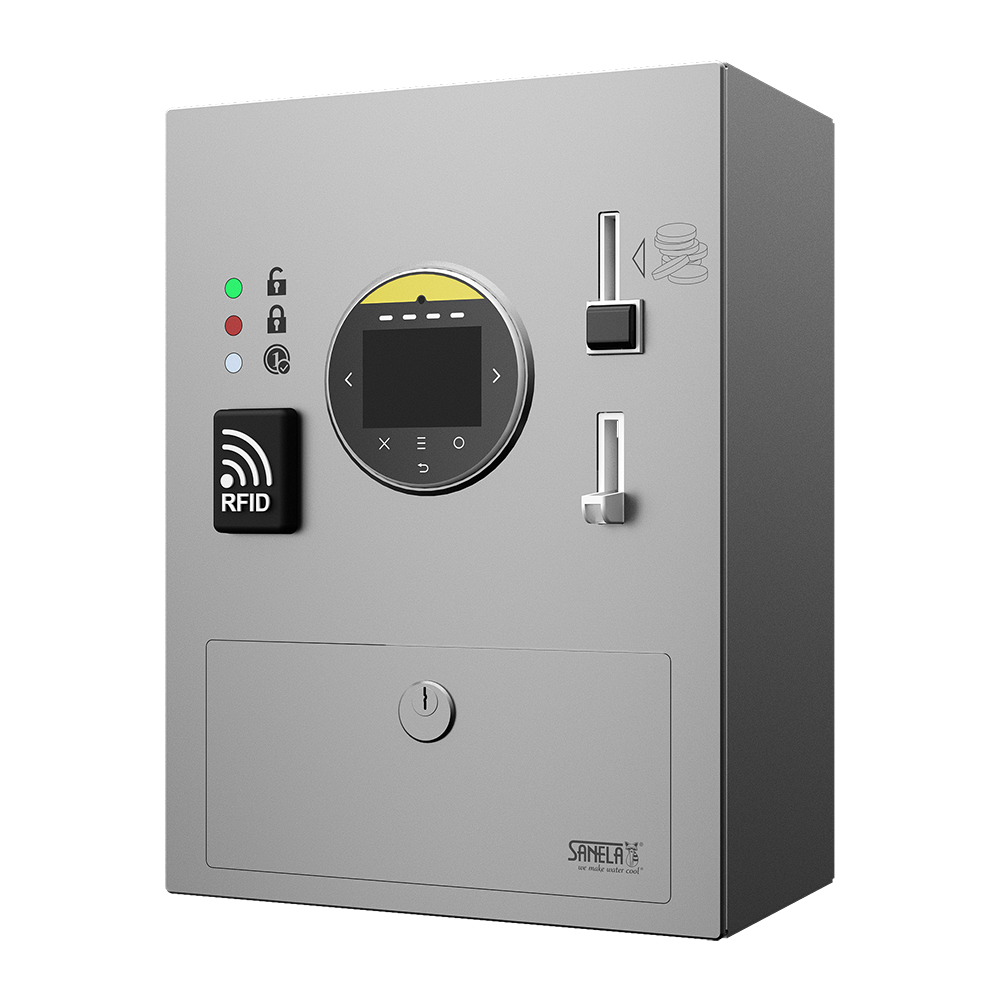

SLZA 43A
Automatic device for door lock, multiple payment methods, 24 V DC
Characteristics
- includes Bluetooth control (paid Sanela control app available for download)
- vandal-proof
- automatic device for door lock, with multiple payment methods, 1 - 4 Door locks
- door lock selection is made on the display of the payment terminal
- payment with coins, tokens, RFID tokens, contactless payment card, Google Pay or Apple Pay
- the device adds up the coins but does not return
- after payment the selected door lock opens for adjusted time
- automatic notification when the cash register is full as an option
- parameter setting and communication with the electronics via the Sanela Control app (Bluetooth)
- lockable
- for indoor use, temperature range +5 to +40 °C
- material stainless steel AISI 304 (1.4301)
- brushed finish
- Order number: 88438
- EAN: 8591385884382
I am interested in more information:
Supply specification
SLZA 43A - Supply No. 88438 stainless steel payment device with electronics including Bluetooth module, coin box, coin holder, credit card reader, RFID token credit value reader, set of keys (2 pcs.), SW door opener
Technical information
| Dimensions: | 320 x 240 x 160 mm |
| Weight: | 7,85 kg |
| Thickness of material: | the front cover - 3 mm |
| box - 1,5 mm | |
| Operating voltage: | 24 V DC |
| Power input in sleep mode: | 8 W |
| Total power consumption of 1 door lock: | 16 W |
| Total power consumption of 2 door locks: | 24 W |
| Accepted coins: |
0,5, 1 and 2 EUR |
| Adjustable time for unlocking: | 1 - 310 sec. |
| Adjustable minimum value for unlocking: | 1 -19 €, standard 1 € |
Downloads
- Mounting instructions (7.53 MB)
- Catalogue list (634.06 kB)
- Circuit diagram (3.29 MB)
