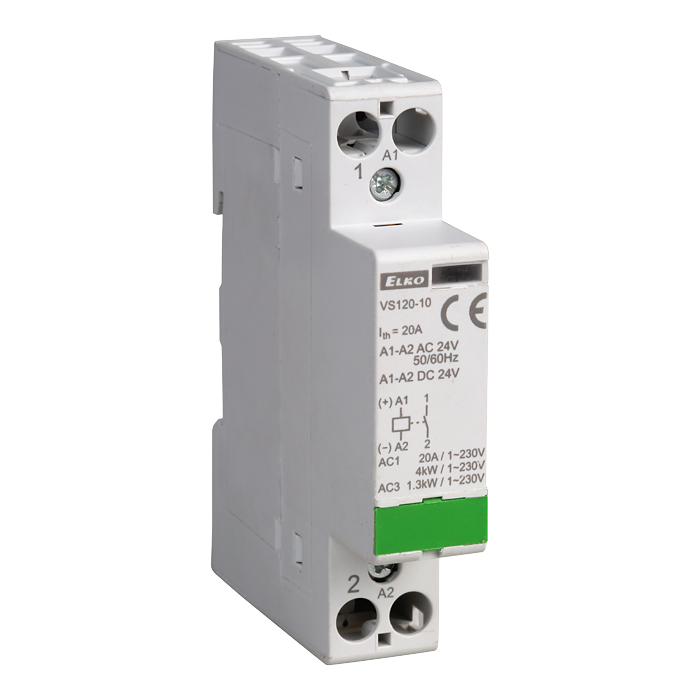

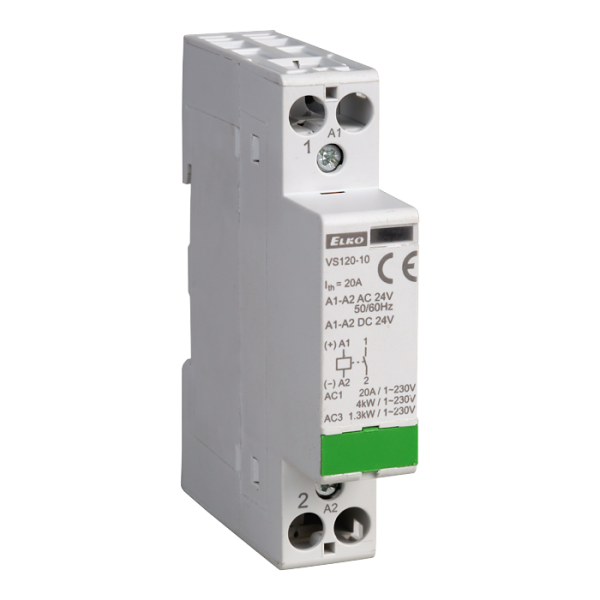

SLZA 53

Power supply contactor, 230 V AC / 20 A

Characteristics

  • possible for use in set with SLZA 41xx or SLZA 04xx
  • change power load 230 V AC into 20 A
  • is placed on DIN rail into the switchboard
  • Order number: 88530
I am interested in more information:

Supply specification

SLZA 53 - Supply No. 88530 - contactor 24 V DC

Technical information

Operating voltage: 24 V DC
Switching voltage: 230 V AC
Max. switched current: 20 A
Number of switched contacts: 1
