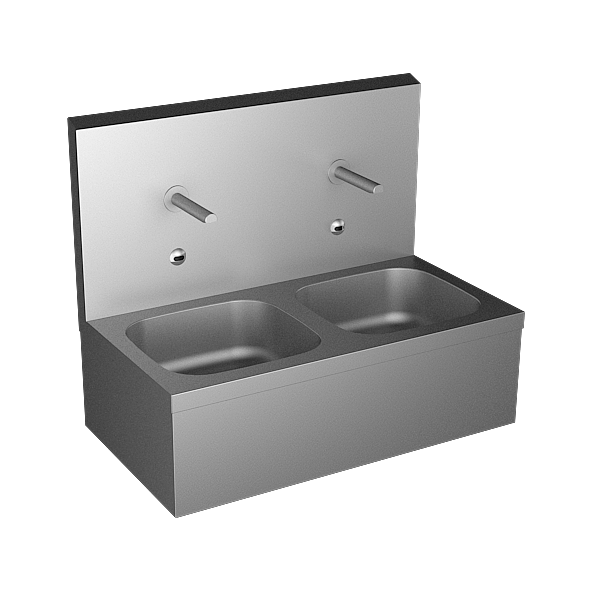

SLUN 07E
Stainless steel wall hung double sink with integrated electronics, 24 V DC
Characteristics
- economical aerator, rate of flow 6 l/min
- hygienic flush
- vandal-proof
- stainless steel wall hung double-sink with back wall and integrated infra-red electronics
- vandal-proof stainless steel spouts and sensing heads
- water is flowing as long as hands are in the active range
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
- function of automatic water stop after 5 minut of continuous flow
- START/STOP program
- parameter adjustment using by the remote control SLD 03
- temperature is regulated by angle valves
- material AISI - 304
- brushed finish
- Order number: 93071
I am interested in more information:
Supply specification
SLUN 07E - Supply No. 93071 - stainless steel double-sink with electronics and spout (2 pcs.), electromagnetic valve (2 pcs.), Y-piece (2 pcs.), angle valve with filter and check valve (4 pcs.), connecting hoses, siphon, mounting set
Technical information
Temperature regulation: | for cold and hot water |
Power supply: | 24V DC |
Installation: | wall hung |
Category: | double sink |
Control: | infra-red |
Operating voltage: | 24 V DC |
Active range: | 0 - 0,3 m |
Recommended flow pressure: | 0,1 - 0,6 MPa |
Rate of flow: | 6 l/min. (inf. data) |
Water inlet: | male thread G 1/2“ |
Downloads
- Mounting instructions (3.65 MB)
- Catalogue list (476.14 kB)
- 2D Drawing (429.95 kB)
