SLUN 07EB

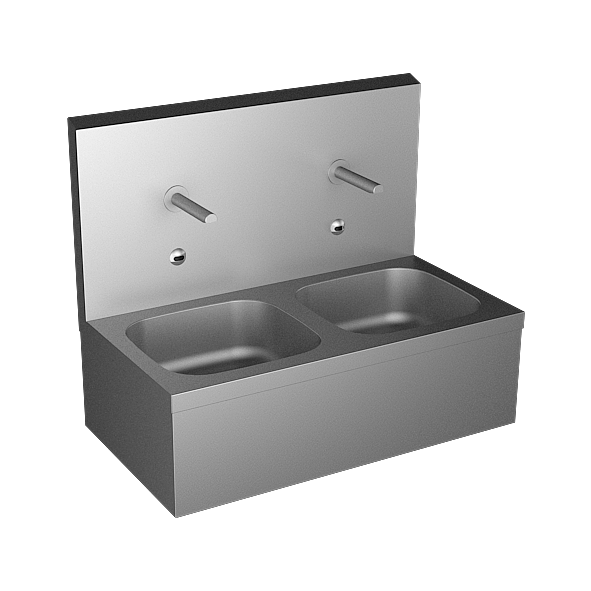

Stainless steel wall hung double sink with integrated electronics, 6 V

Characteristics

  • economical aerator, rate of flow 6 l/min
  • hygienic flush
  • vandal-proof
  • stainless steel wall hung double-sink with back wall and integrated infra-red electronics
  • vandal-proof stainless steel spouts and sensing heads
  • water is flowing as long as hands are in the active range
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay (can be set in range 0,25 - 7,75 s)
  • function of automatic water stop after 5 minut of continuous flow
  • monitoring of battery capacity
  • START/STOP program
  • parameter adjustment using by the remote control SLD 03
  • temperature is regulated by angle valves
  • material AISI - 304
  • brushed finish
  • Order number: 93072

Supply specification

SLUN 07EB - Supply No. 93072 - stainless steel double-sink with electronics and spout (2 pcs.), electromagnetic valve (2 pcs.), Y-piece (2 pcs.), angle valve with filter and check valve (4 pcs.), connecting hoses, siphon, mounting set, 4 pcs. alkaline batteries AA 1,5 V, 2700 mAh

Technical information

installation: wall hung
category: double sink
control: infra-red
Operating voltage: 6 V
Battery life: 4 pcs. AA alkaline batteries 1,5 V, 2700 mAh (approx. 2 years (100 uses per day)
Active range: 0 - 0,3 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 6 l/min. (inf. data)
Water inlet: male thread G 1/2“
